Rear Compartment Lid Latch Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

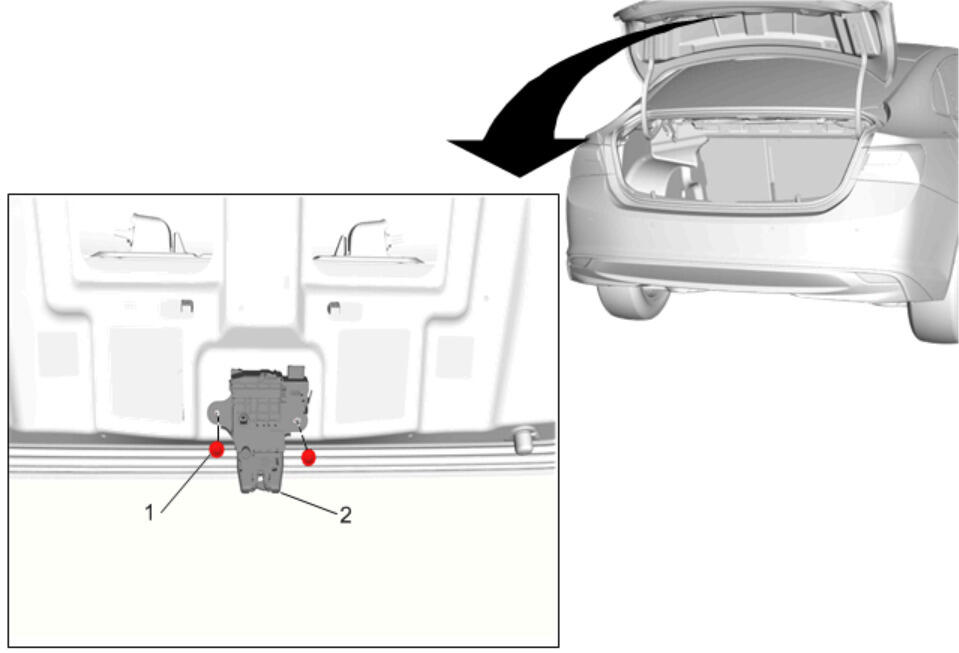

| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Lid Latch Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Rear Compartment Lid Latch Procedure Disconnect the electrical connector. |
