Front Side Door Lock Cylinder Rod Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Lock Cylinder Replacement

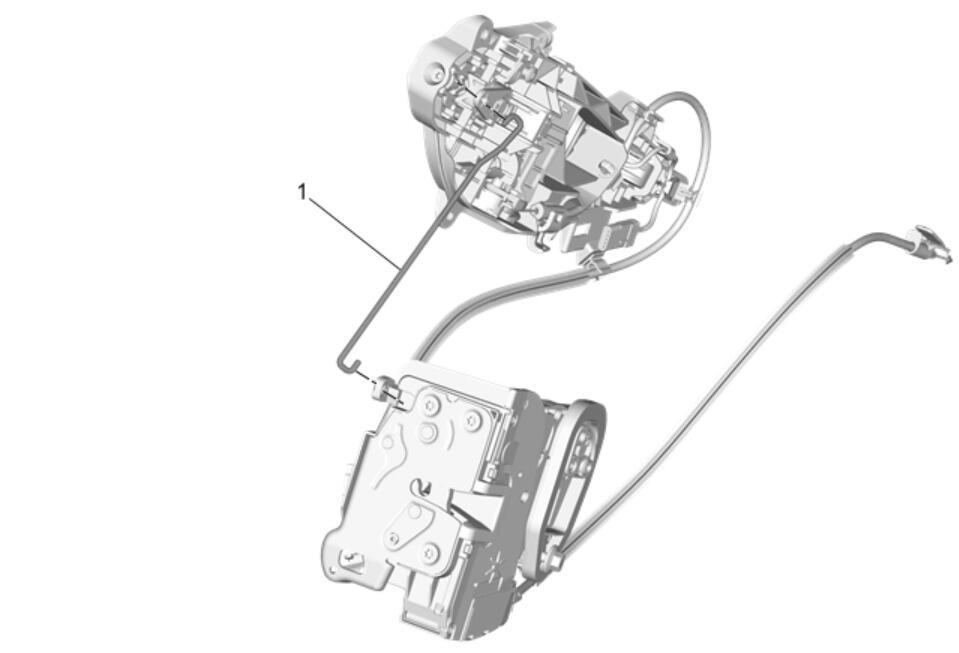

1	Front Side Door Lock Cylinder Rod Procedure Remove the front side door lock cylinder rod from the door lock cylinder. Remove the front side door lock cylinder rod from the door latch.

Callout

Component Name

Preliminary Procedure
Front Side Door Lock Cylinder Replacement

Front Side Door Lock Cylinder Rod

Procedure

Remove the front side door lock cylinder rod from the door lock cylinder.
Remove the front side door lock cylinder rod from the door latch.
