Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Front Side Door Latch Replacement - Remove
- NOTE:
Its not necessary to disconnect the inside or outside handle cables to replace the door lock cylinder.
Front Side Door Lock Cylinder Rod (1) - Remove

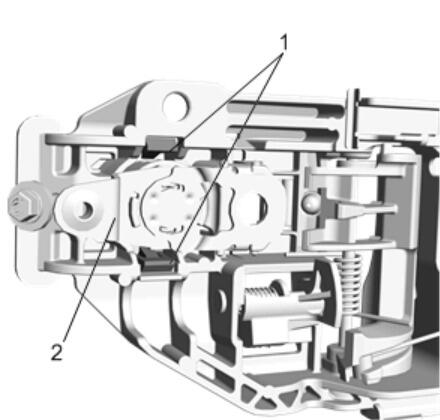

From the back side of the outside handle bracket, use a suitable tool, push up and down on the lock cylinder retainers (1) releasing the retainer from the cylinder (2).
With the lock cylinder retainer (1) removed, pull the lock cylinder (2) rearward releasing it from the handle bracket (3).
NOTE:
When performing this procedure the latch and handle bracket assembly Must be removed from the vehicle to replace the door lock cylinder assembly.
