Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Front Side Door Access Hole Plug (1) - Remove
NOTE:- USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
- Around 10 to 12 rotations is enough to allow the Front Side Door Outside Handle Lock Cylinder to be removed.
- Front Side Door Outside Handle Bracket Rear Screw (2) - Loosen

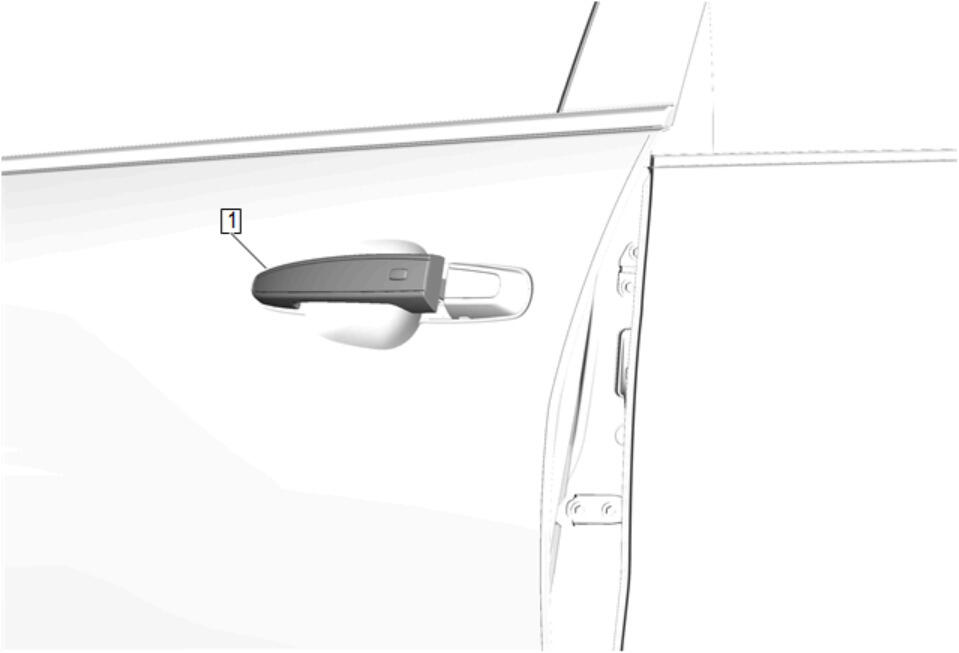

Pull the door handle (1) out to the open position.
Front Side Door Lock Cylinder Opening Cover (1) - Remove
