Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

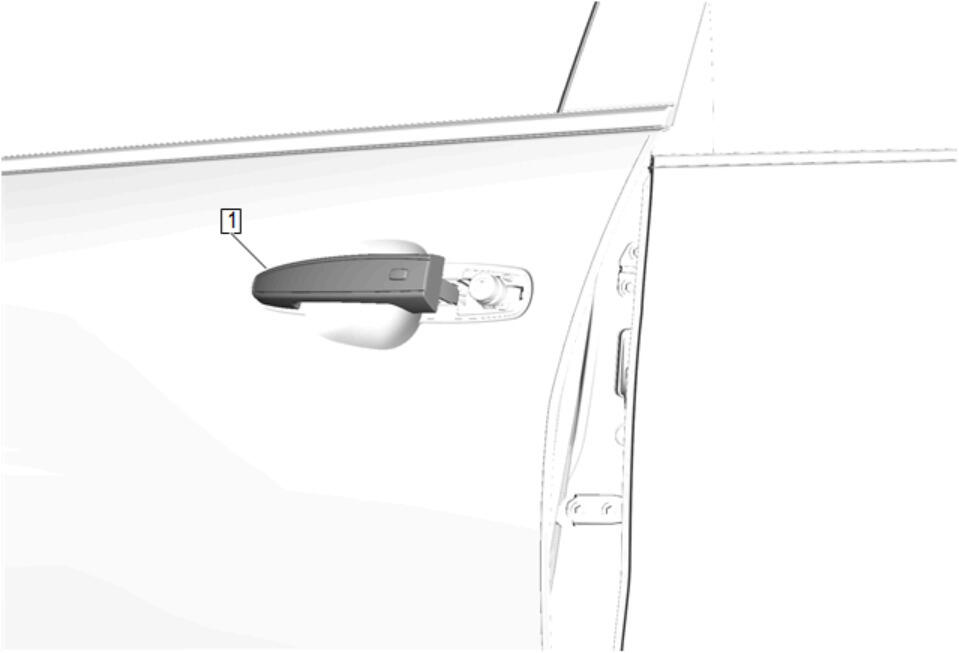

Pull the door handle (1) out to the open position.
Courtesy of GENERAL MOTORS COMPANY

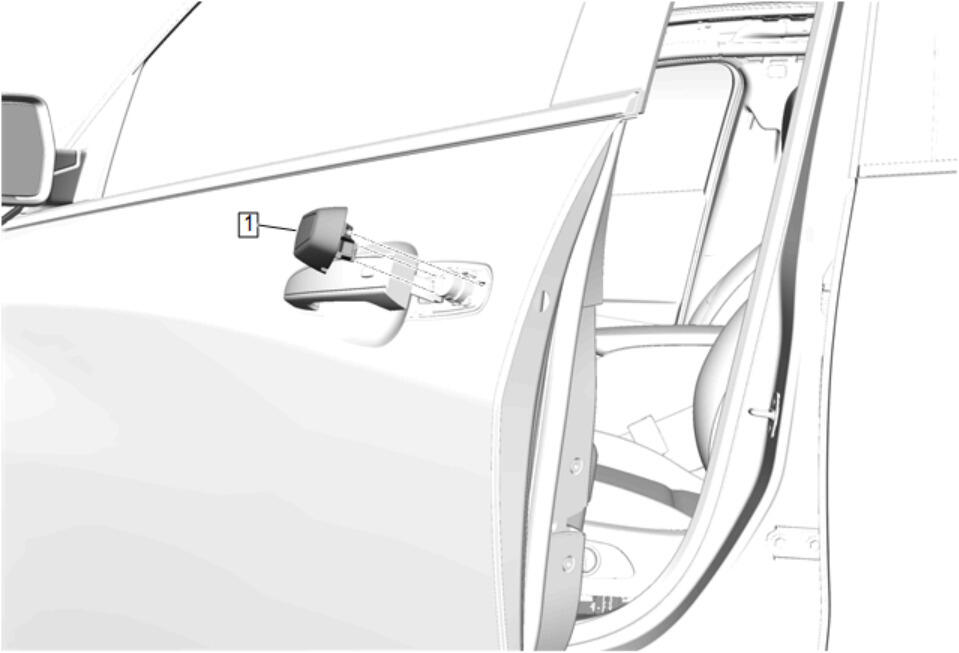

Front Side Door Lock Cylinder Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Side Door Outside Handle Bracket Rear Screw (2) - Tighten 4.7 N.m (42 lb in)

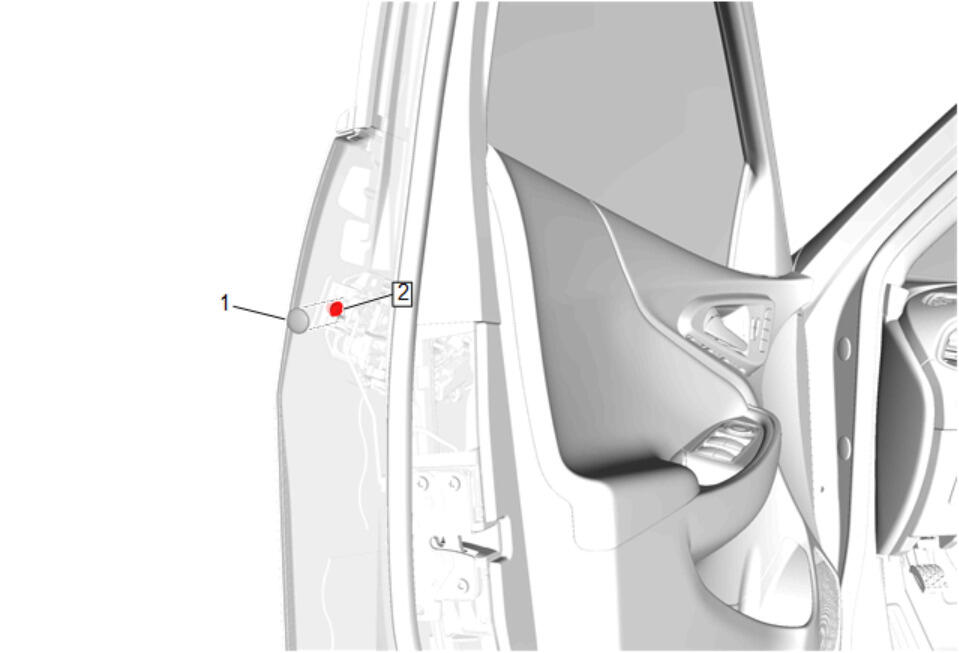

Front Side Door Access Hole Plug (1) - Install
