Door Lock Switch Replacement - Passenger Front

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Door Lock Switch Passenger Front Procedure From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Front Side Door Trim Replacement

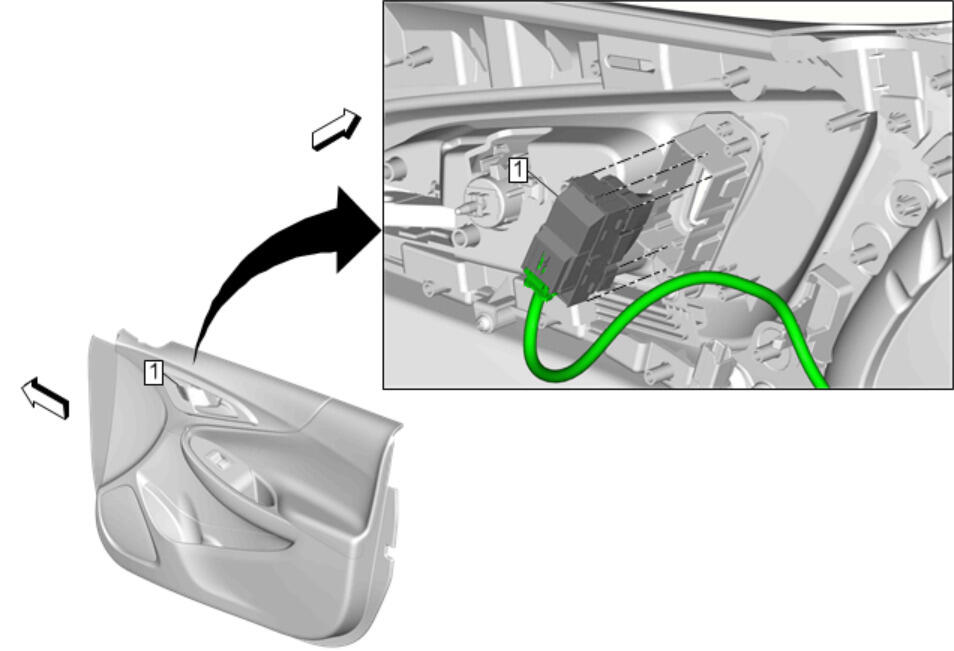

Door Lock Switch Passenger Front

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
Control Module References for programming and setup information, if required.
