Auxiliary Rear Compartment Latch Release Handle Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

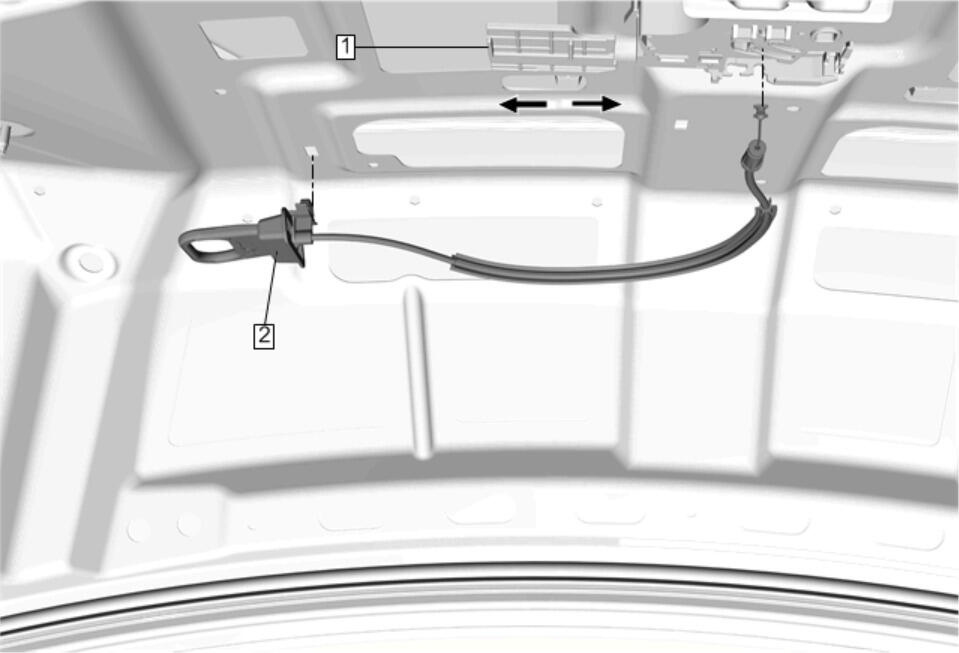

GM4212069Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Lid Inner Panel Trim Replacement
1 Rear Compartment Lid Latch Access Cover
Procedure
Depress the retainers and slide the rear compartment lid latch access cover to access the cable.
2 Auxiliary Rear Compartment Latch Release Handle
Procedure
  1. Disconnect the auxiliary rear compartment latch release handle from the lid.
  2. Disconnect the auxiliary rear compartment latch handle from the latch.
