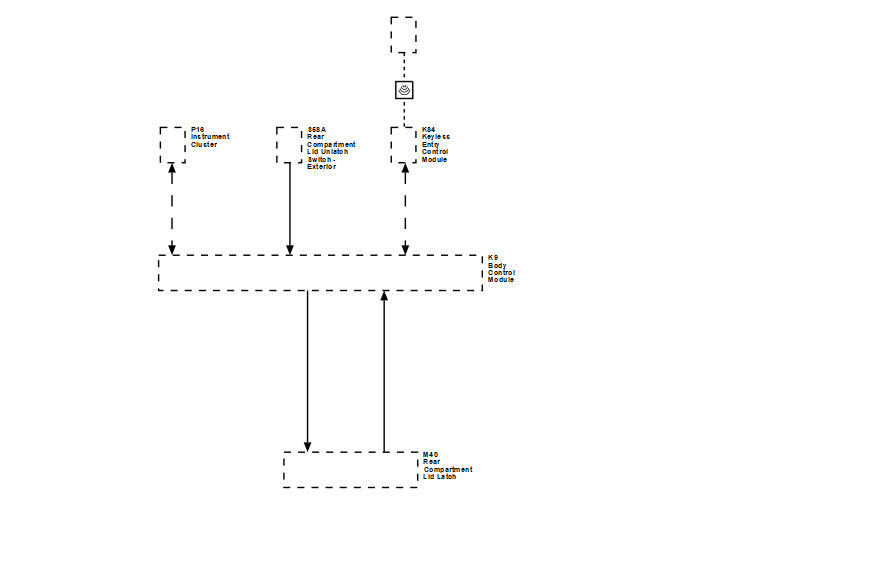

Rear Compartment Lid Release System Block Diagram Identification
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| WL |
Wireless |
| K84 |
K84 Keyless Entry Control Module |
| S58A |
S58A Rear Compartment Lid Unlatch Switch - Exterior |
| P16 |
P16 Instrument Cluster |
| K9 |
K9 Body Control Module |
| M40 |
M40 Rear Compartment Lid Latch |
