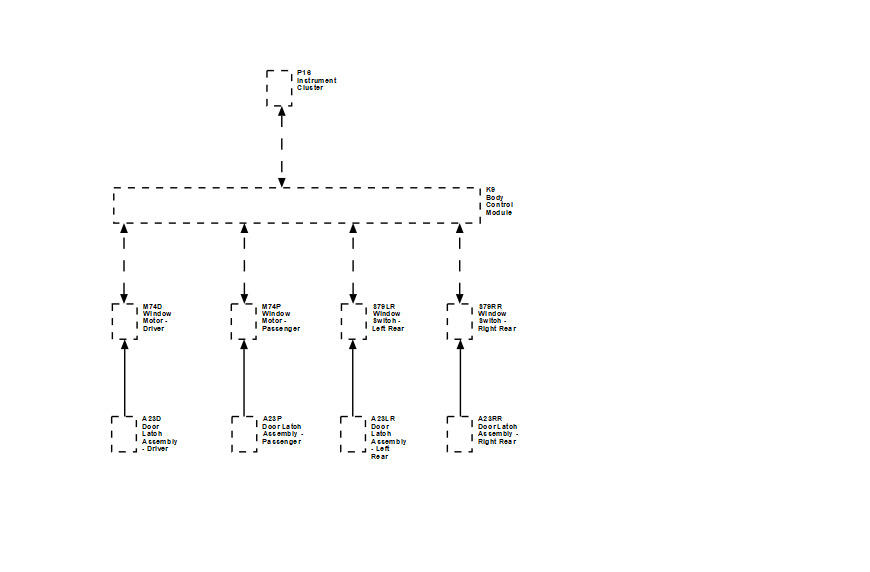

Door Ajar System Block Diagram Identification
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| P16 | P16 Instrument Cluster |
| K9 | K9 Body Control Module |
| A23D | A23D Door Latch Assembly - Driver |
| A23P | A23P Door Latch Assembly - Passenger |
| A23LR | A23LR Door Latch Assembly - Left Rear |
| A23RR | A23RR Door Latch Assembly - Right Rear |
| M74D | M74D Window Motor - Driver |
| M74P | M74P Window Motor - Passenger |
| S79LR | S79LR Window Switch - Left Rear |
| S79RR | S79RR Window Switch - Right Rear |
