Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

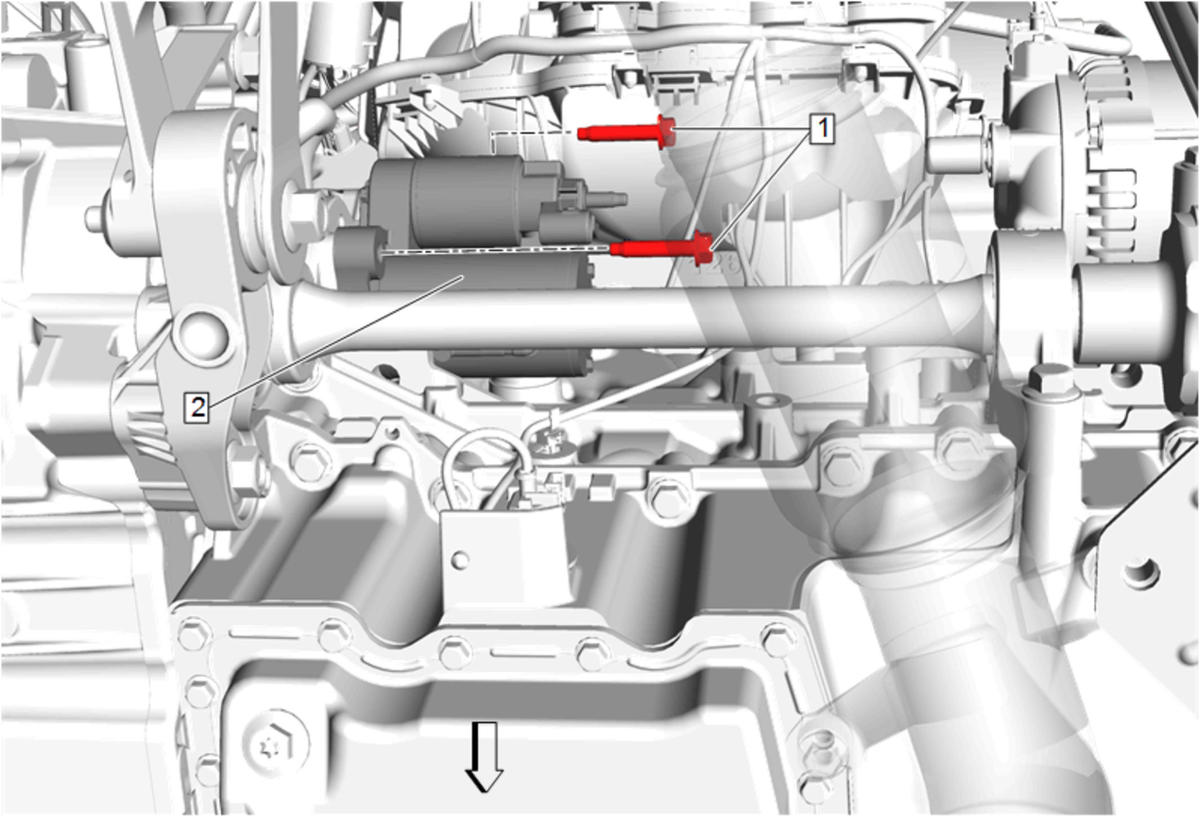

Starter (2) - Install
- Starter Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

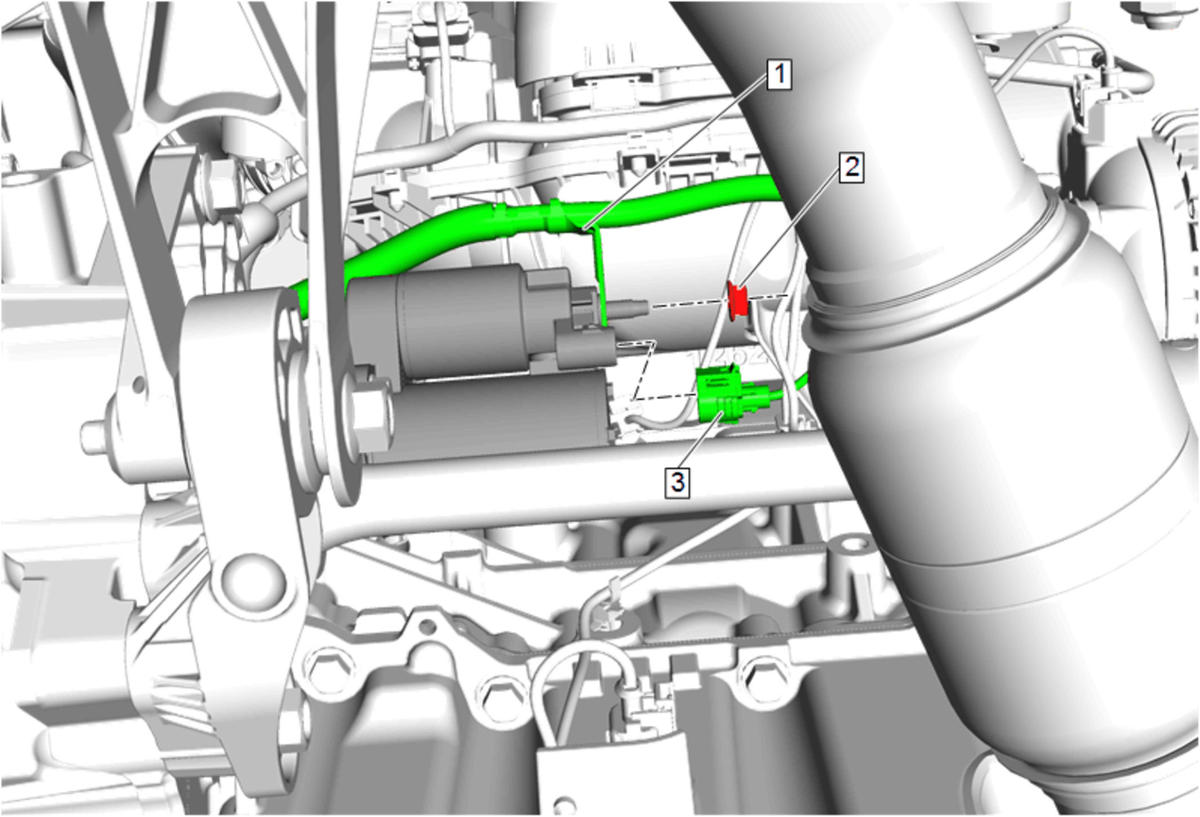

Battery Positive Cable (1) - Install
- Battery Positive Cable Nut (2) @ Starter Solenoid - Install and tighten 13 N.m (115 lb in)
- Electrical Connector (3) - Connect
- Lower the vehicle.
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
CAUTION:
Refer to Fastener Caution
