Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

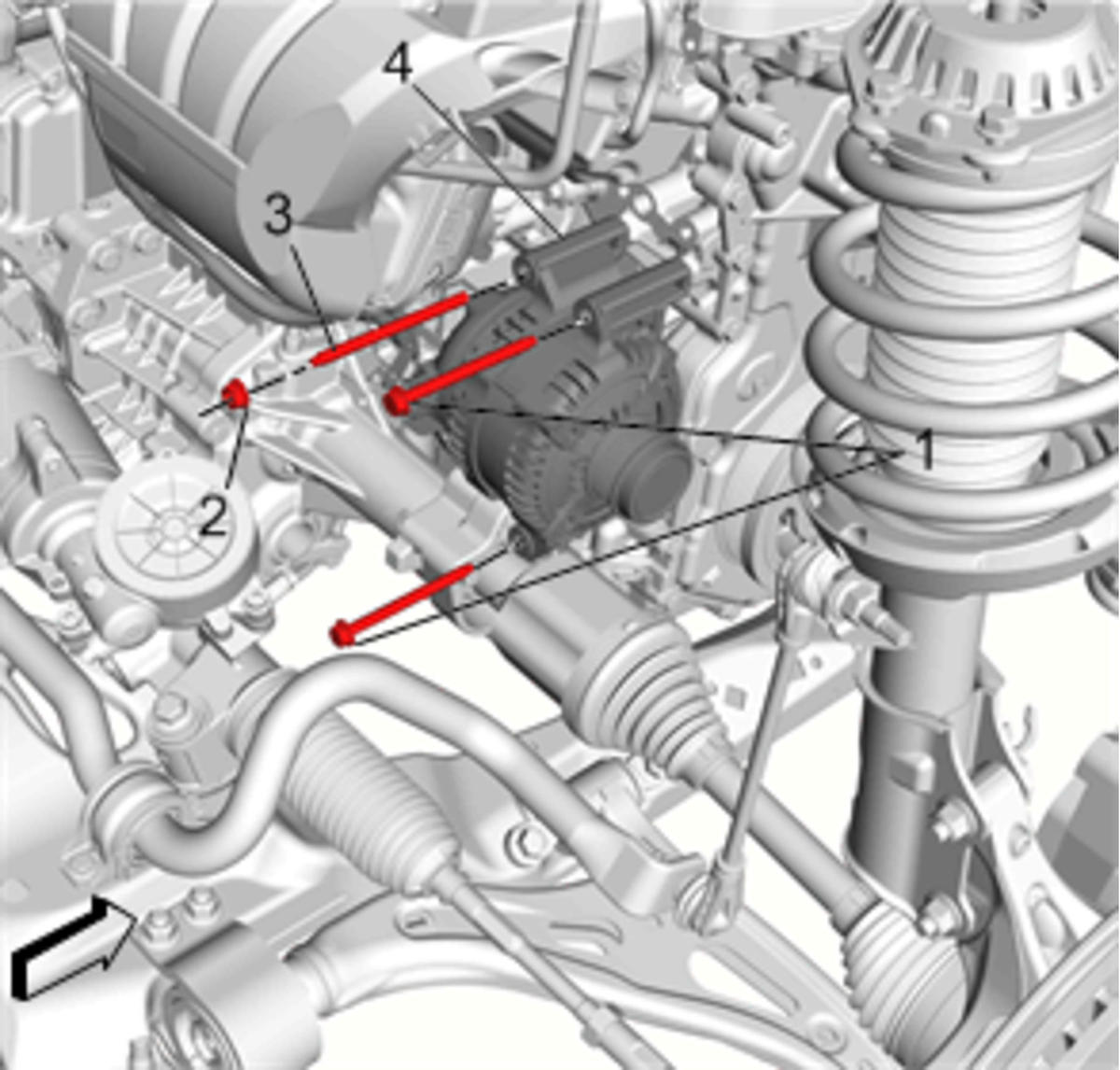

  1. GM3908526Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the generator. (4)

  2. Generator Mounting Stud (3) Install and tighten 9 N.m (80 lb in)
  3. Generator Bolt (1) Install and tighten [2X] 22 N.m (16 lb ft)
  4. Generator Nut (2) - Install and tighten 22 N.m (16 lb ft)
  5. Raise and support the vehicle. Lifting and Jacking the Vehicle

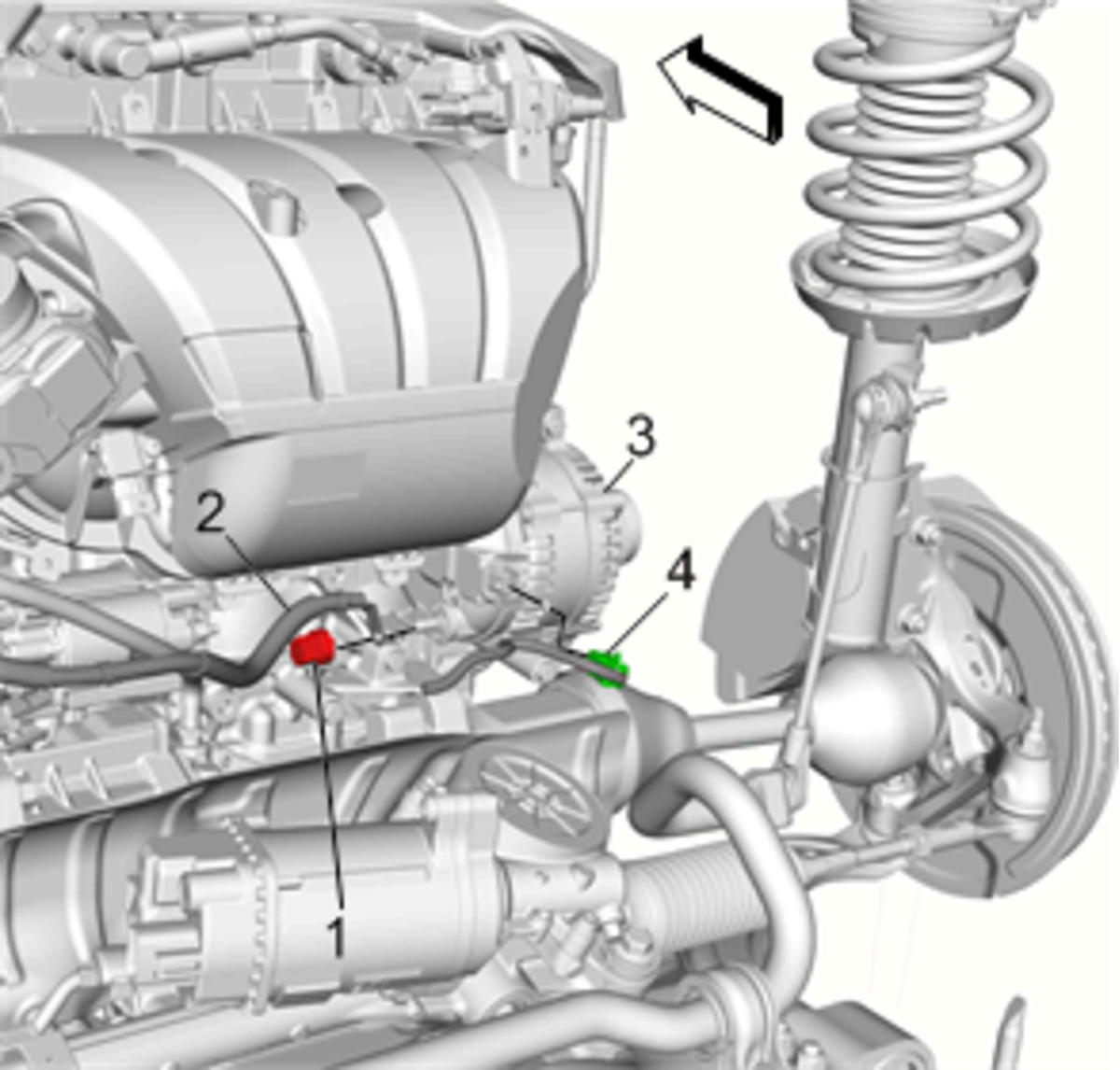

  6. GM3908524Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (2) - Install

  7. Battery Positive Cable Nut (1) - Install and tighten 15 N.m (11 lb ft)
  8. Electrical Connector (4) - Connect
  9. Lower the vehicle.
  10. Drive Belt Replacement - Install
  11. Air Cleaner Assembly Replacement - Install
  12. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9) .
