Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
  2. Water Pump, Air Conditioning Compressor, and Generator Belt Replacement - Remove
  3. Air Cleaner Assembly Replacement - Remove
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle

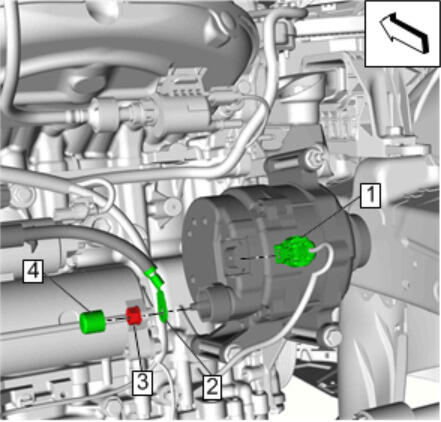

  5. GM4233875Courtesy of GENERAL MOTORS COMPANY

    Protective Cap (4) - Remove

  6. Battery Positive Cable Nut (3) - Remove
  7. Battery Positive Cable (2) - Remove
  8. Electrical Connector (1) - Disconnect
  9. Lower the vehicle.

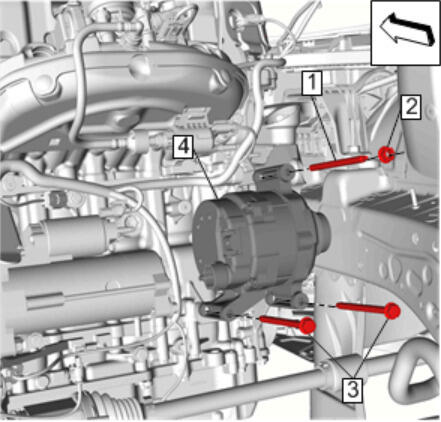

  10. GM4233907Courtesy of GENERAL MOTORS COMPANY

    Generator Bolt (3) - Remove [2X]

  11. Generator Nut (2) - Remove
  12. Remove the generator mounting stud, if necessary. (1)
  13. Remove the generator. (4)
