Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
Upper Engine Wiring Harness Junction Block Upper Cover (1) - Remove
Engine Wiring Harness Junction Block Cover (1) - Remove

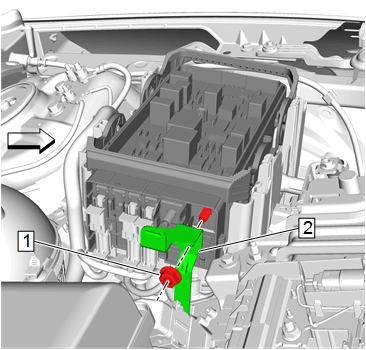

Auxiliary Battery Positive Cable Nut (1) - Remove
- Auxiliary Battery Positive Cable (2) - Remove

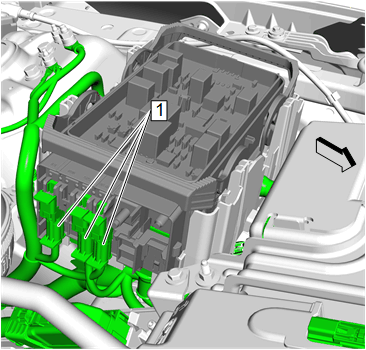

Electrical Connector (1) - Disconnect [3x]
- Disconnect any harness retainers.
Release the 4 retainer tabs using a suitable hook-like tool to release the locking levers to allow the locking levers to be rotated to the full up position. Remove the engine wiring harness junction block. (1)
