Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

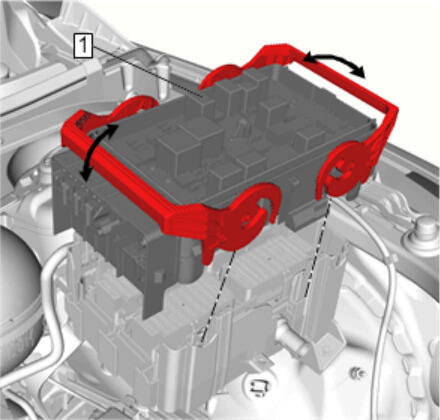

Position the fuse block (1) to the vehicle and push down until the retainer tabs lock into place.
Connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

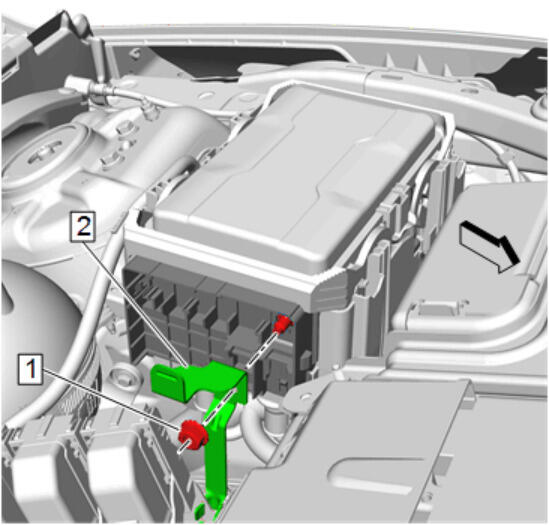

Battery Positive Cable (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Positive Cable Nut (1) - Install and tighten 16 N.m (12 lb ft)
Courtesy of GENERAL MOTORS COMPANY

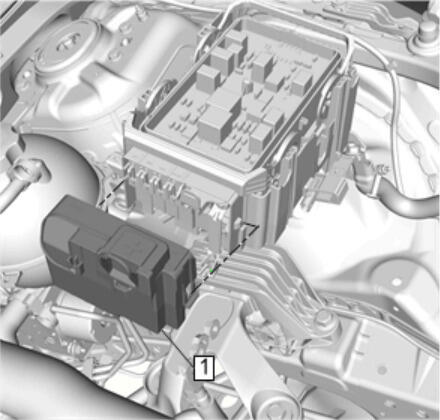

Engine Wiring Harness Junction Block Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

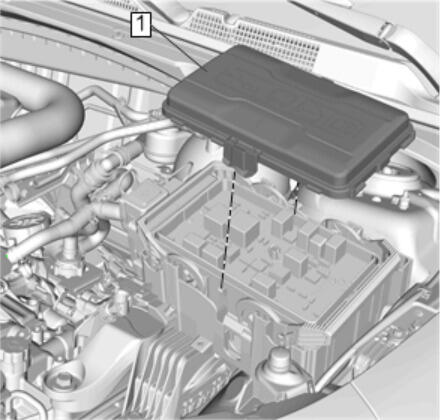

Engine Wiring Harness Junction Block Upper Cover (1) - Install
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
