Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4214766Courtesy of GENERAL MOTORS COMPANY

    Battery (3) - Remove - Battery Replacement

  2. GM4237750Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (2) - Remove - Engine Control Module Replacement

  3. GM4231277Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Mounting Nut (1) - Remove [2x]

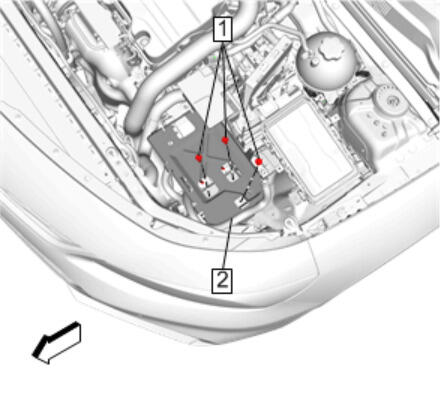

  4. GM4231332Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Mounting Bolt (1) - Remove [3x]

  5. Disconnect any harness retainers attached to the battery tray.
  6. Battery Tray (2) - Remove
