Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

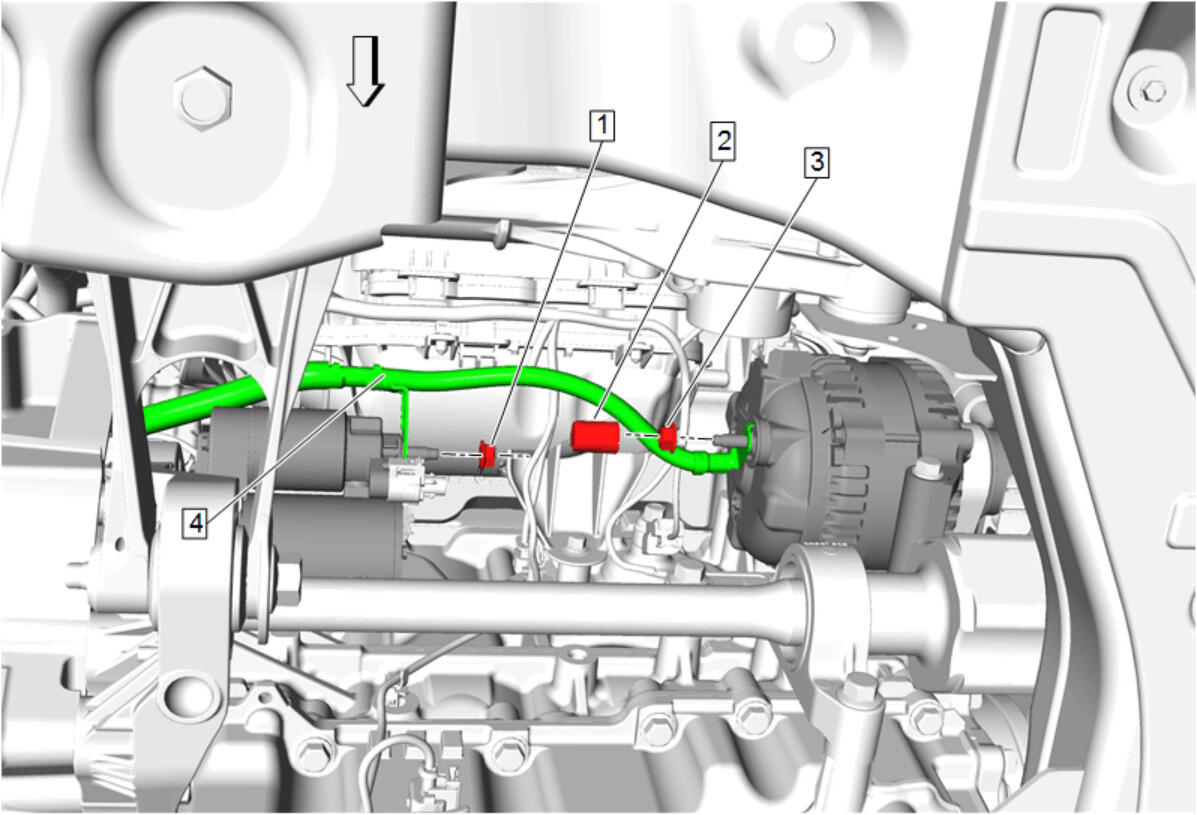

Battery Positive Cable (4) - Install

CAUTION:

Refer to Fastener Caution

Battery Positive Cable Nut (3) @ Generator - Install and tighten 15 N.m (11 lb ft)
Protective Cap (2) - Install
Battery Positive Cable Nut (1) @ Starter Solenoid - Install and tighten 13 N.m (115 lb in)
Courtesy of GENERAL MOTORS COMPANY

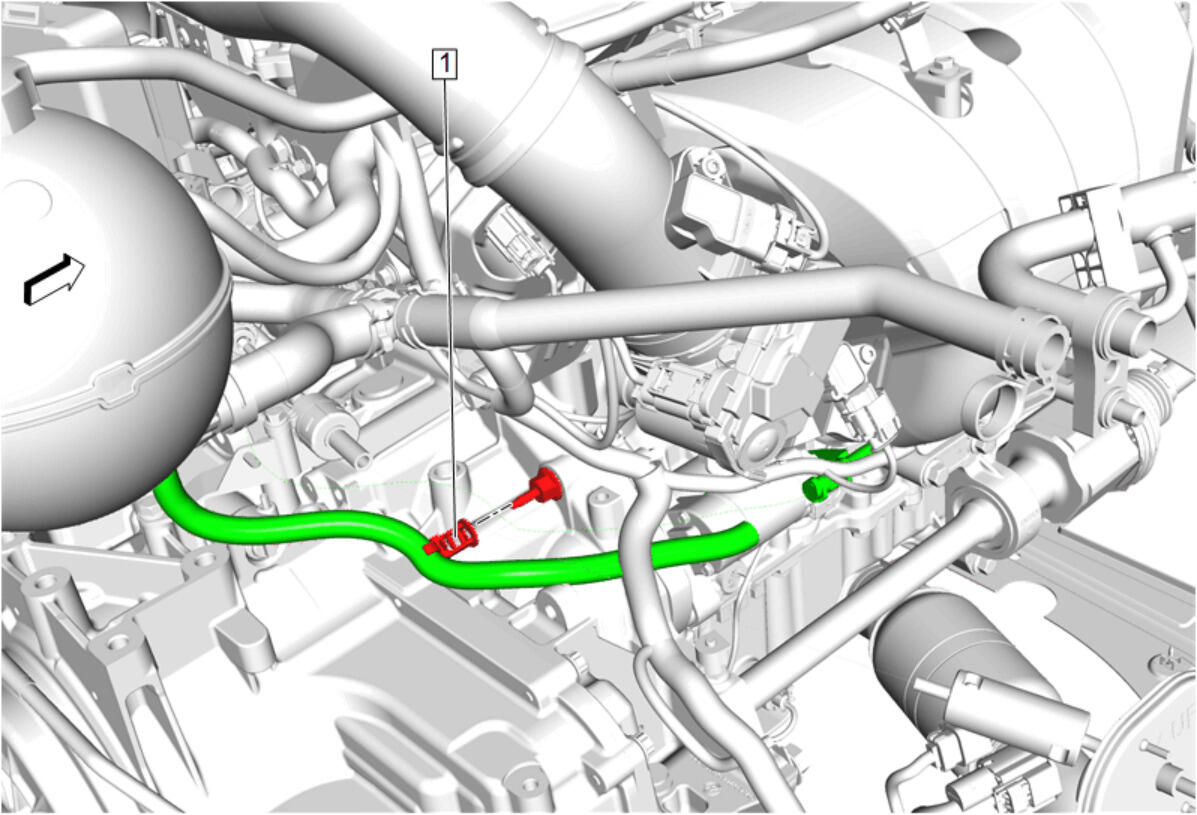

Retainer (1) - Engage
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

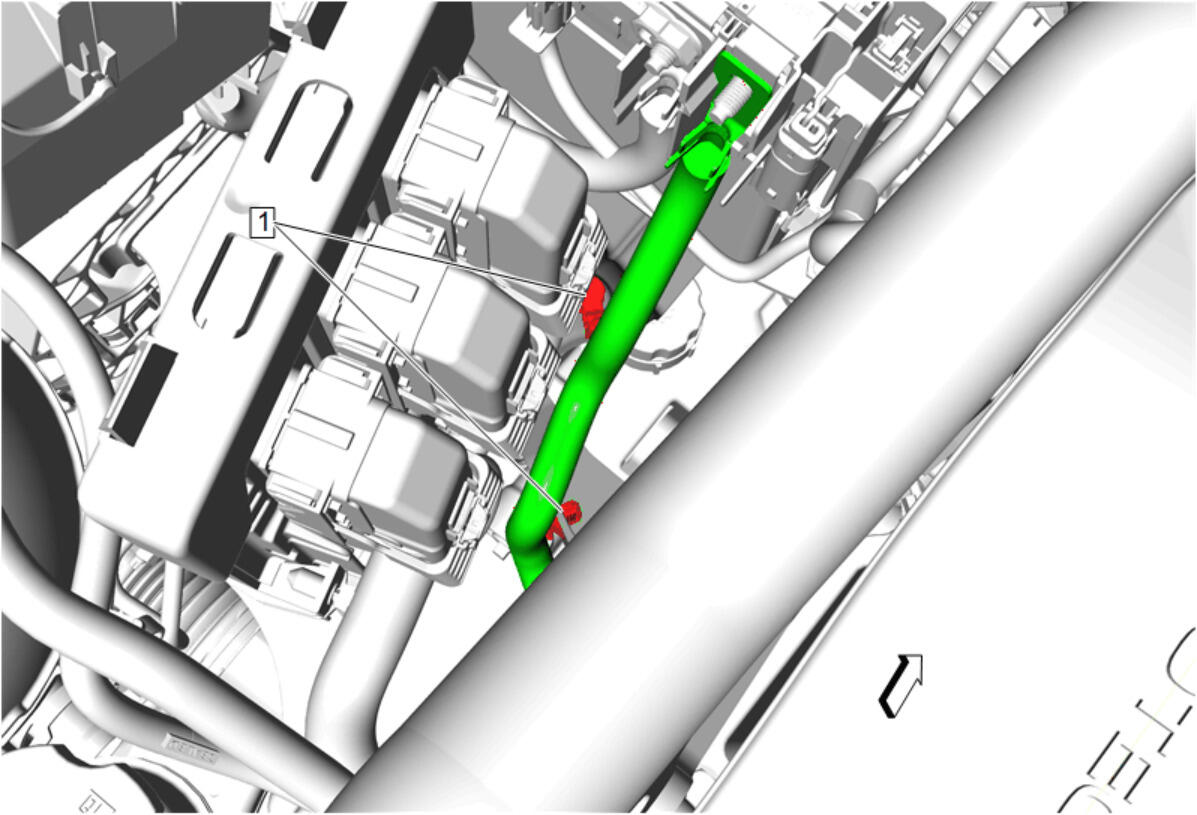

Retainer (1) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (2) - Install
Battery Positive Cable Nut (3) @ Battery Distribution Engine Compartment Fuse Block - Install and tighten - Battery Distribution Engine Compartment Fuse Block Replacement
Courtesy of GENERAL MOTORS COMPANY

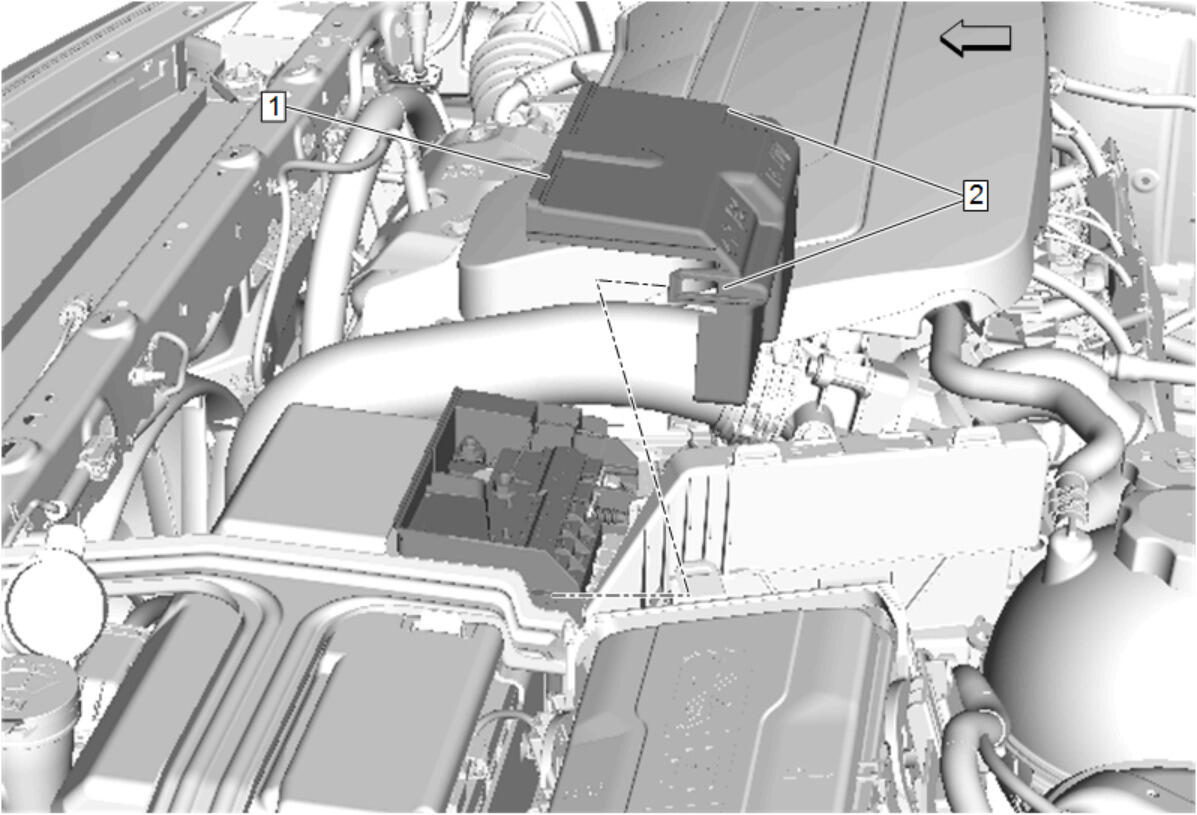

Front Compartment Fuse Block Cover (1) - Install
Retaining Tab (2) - Engage [2x]
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
