Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

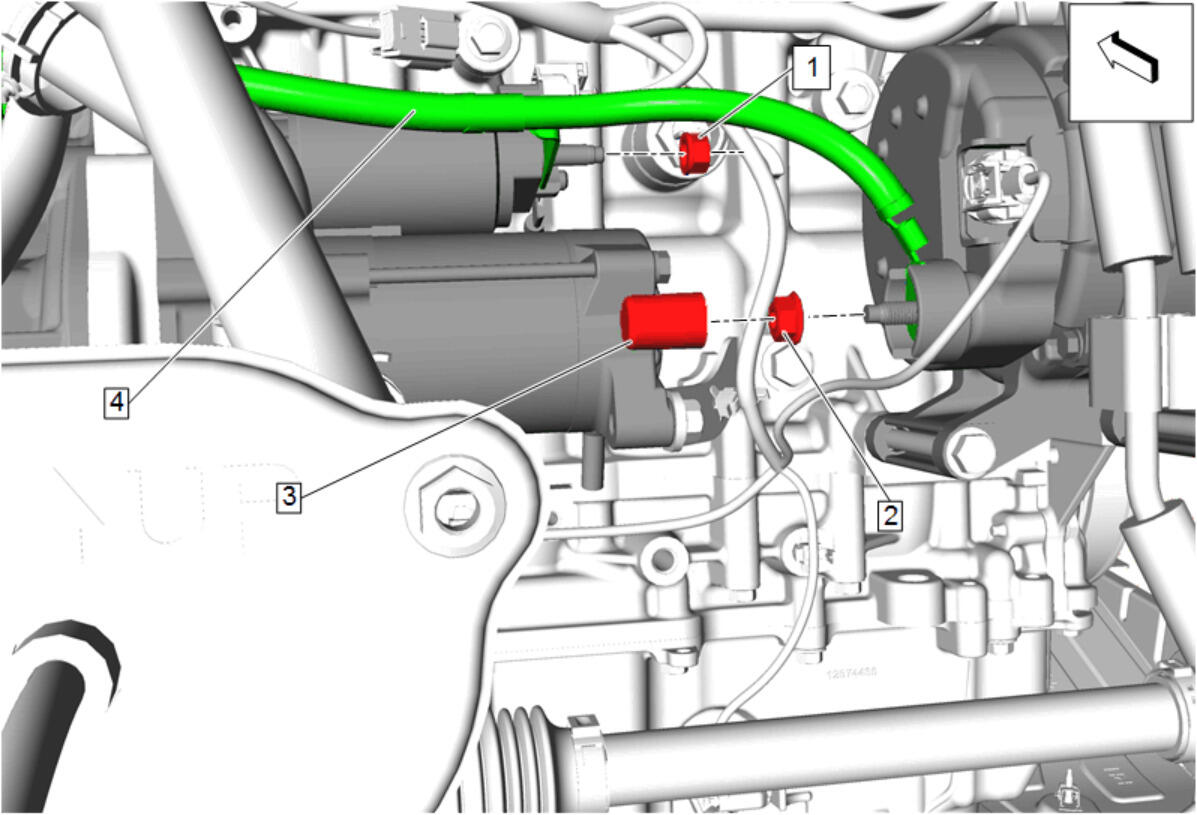

  1. GM5119087Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (4) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Positive Cable Nut (2) @ Generator - Install and tighten 15 N.m (11 lb ft)
  3. Protective Cap (3) - Install
  4. Battery Positive Cable Nut (1) @ Starter Solenoid - Install and tighten 13 N.m (115 lb in)

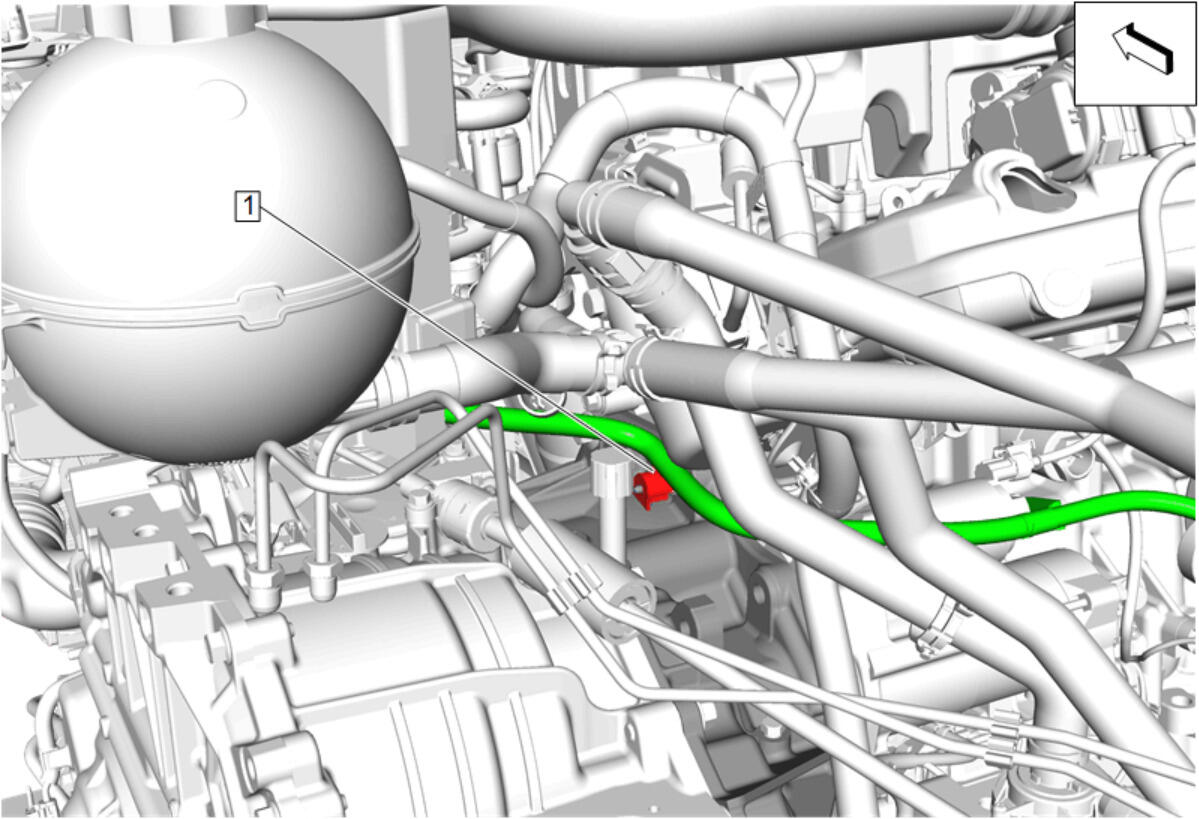

  5. GM5119086Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage

  6. Lower the vehicle.

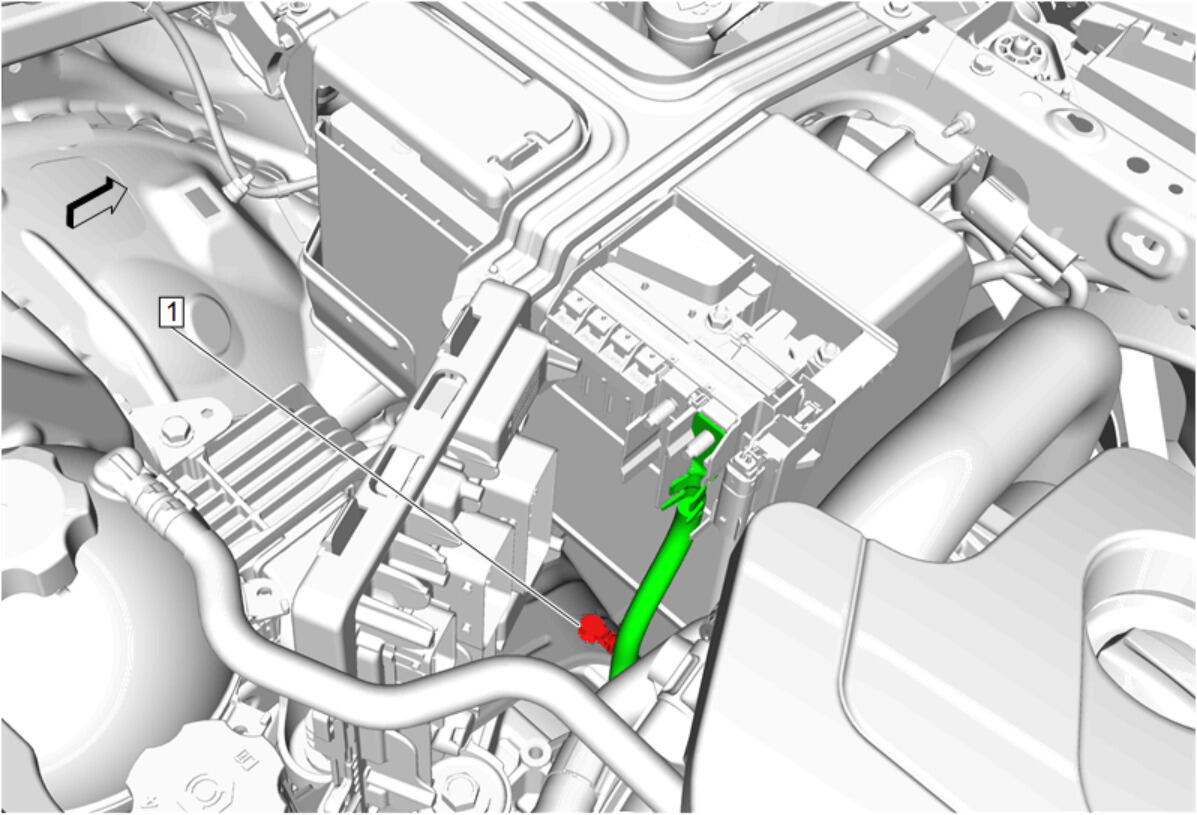

  7. GM5115619Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage

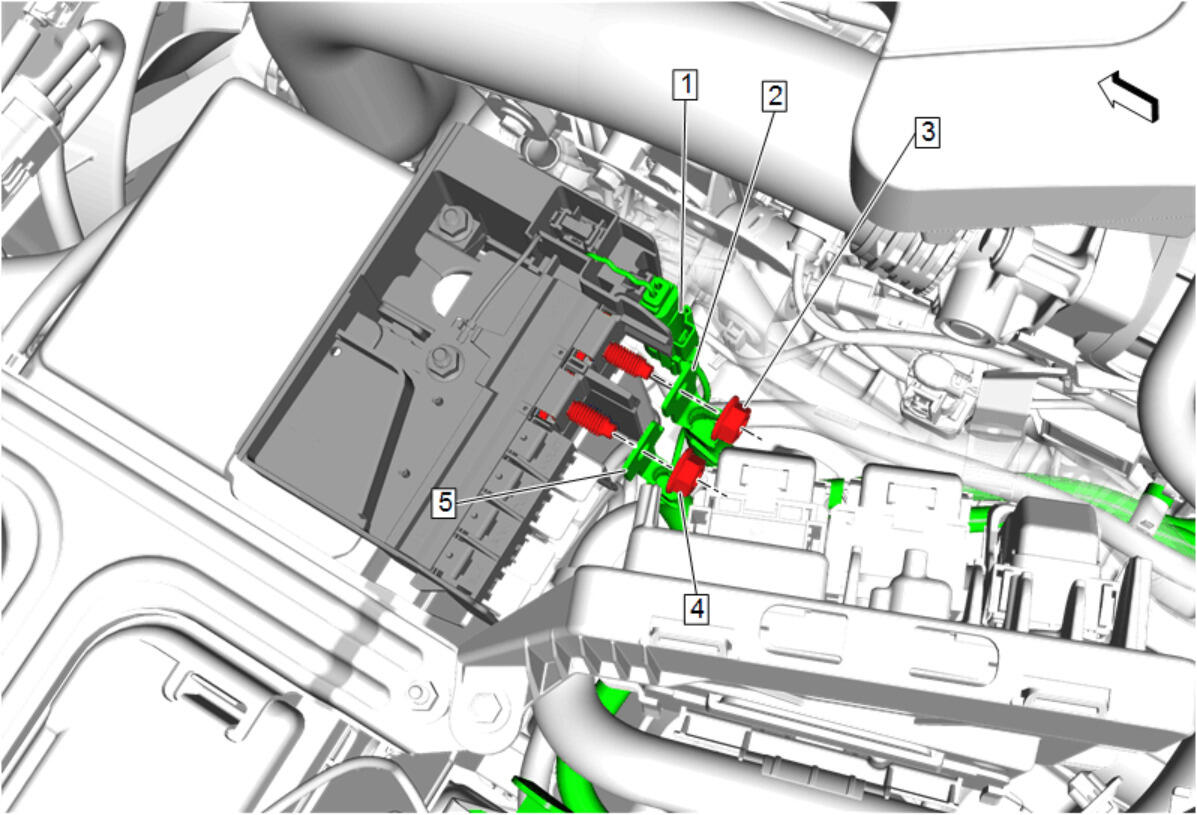

  8. GM5112531Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (2) - Install

  9. Battery Positive Cable Nut (3) @ Battery Distribution Engine Compartment Fuse Block - Install and tighten - Battery Distribution Engine Compartment Fuse Block Replacement
  10. GM5112527Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Fuse Block Cover (1) - Install

  11. Retaining Tab (2) - Engage [2x]
  12. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
