Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

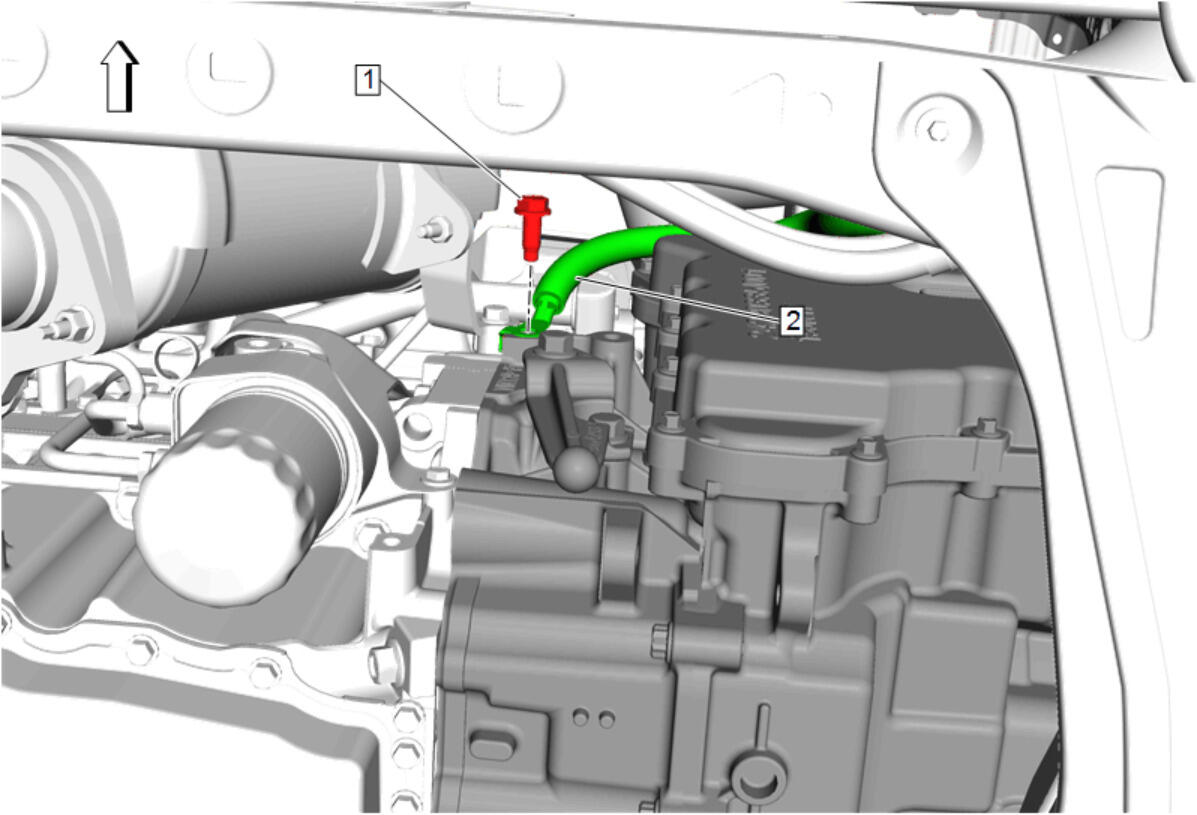

Courtesy of GENERAL MOTORS COMPANY

Battery Negative Cable (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Negative Cable Ground Bolt (1) @ Transmission - Install and tighten 22 N.m (16 lb ft)
Lower the vehicle.

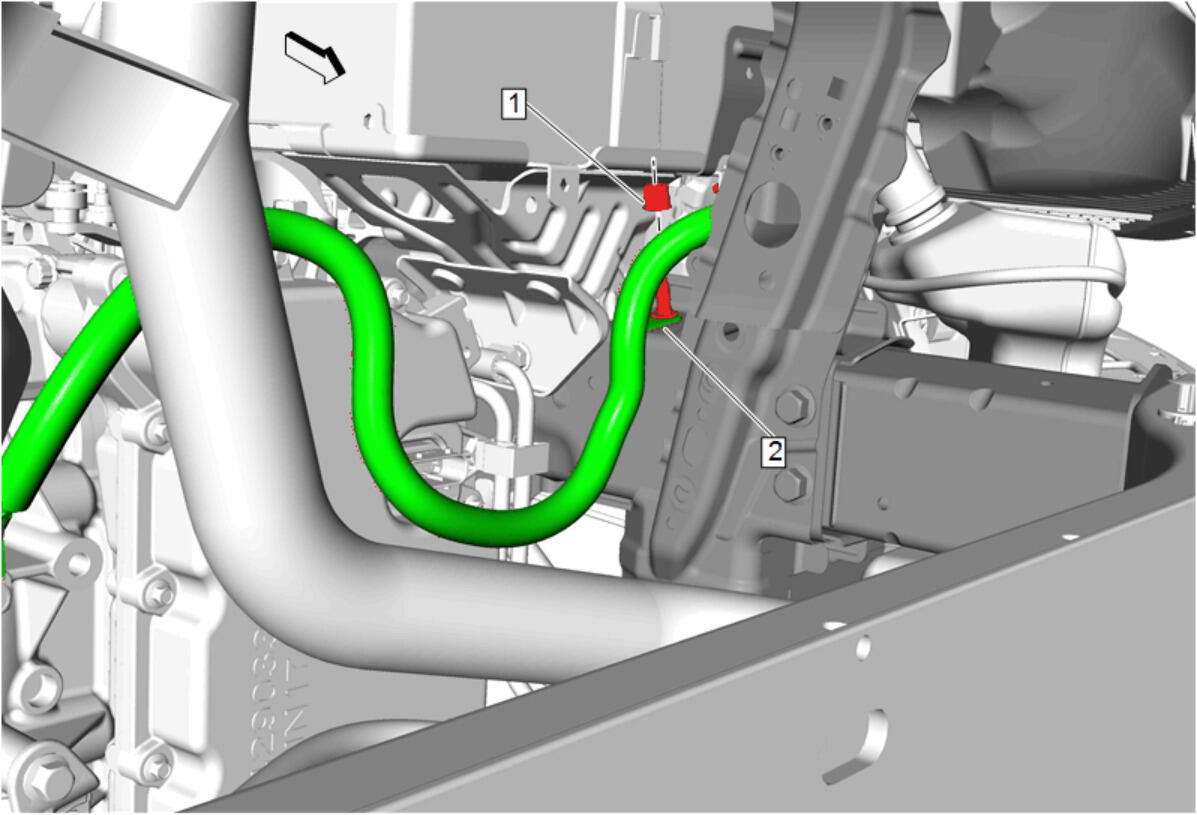

Courtesy of GENERAL MOTORS COMPANY

Battery Negative Cable (2) - Install
Battery Negative Cable Ground Nut (3) @ Frame Rail - Install and tighten 9 N.m (80 lb in)

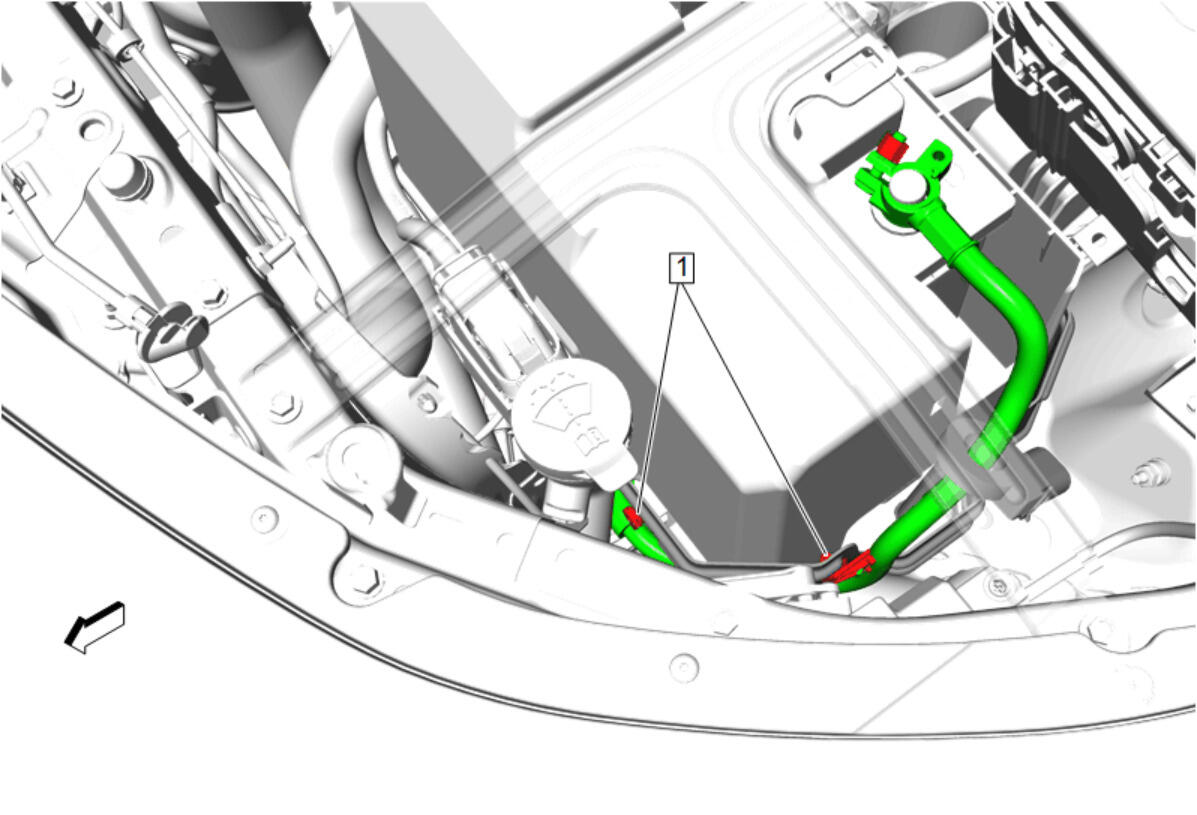

Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Engage [2x]

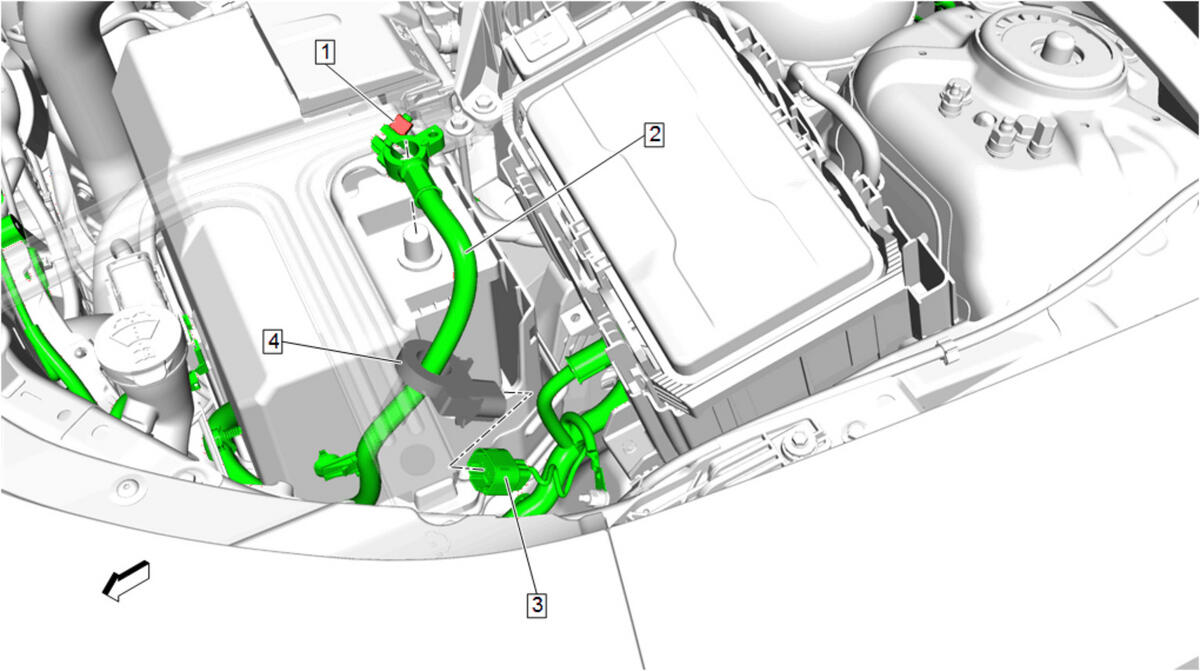

Courtesy of GENERAL MOTORS COMPANY

Battery Negative Cable (2) - Install
Battery Negative Post Clamp Nut (1) - tighten 4.5 N.m (40 lb in)
Battery Current Sensor (4) - Install
Battery Current Sensor Connector (3) - Connect

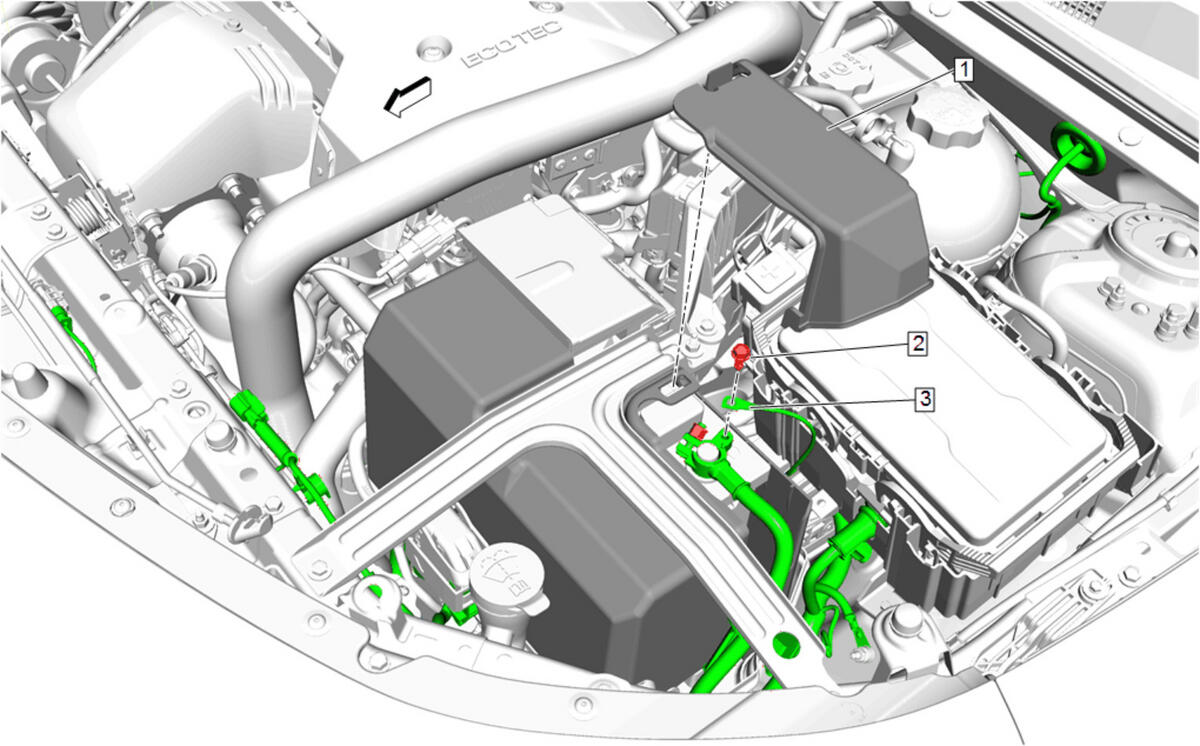

Courtesy of GENERAL MOTORS COMPANY

Body Harness Terminal (3) - Install
Body Harness Ground Fastener (2) @ Battery Negative Post - Install and tighten 9 N.m (80 lb in)
Battery Negative Cable Terminal Cover (1) - Install
Reprogram the battery monitor module. Battery Sensor Module Learn
