Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

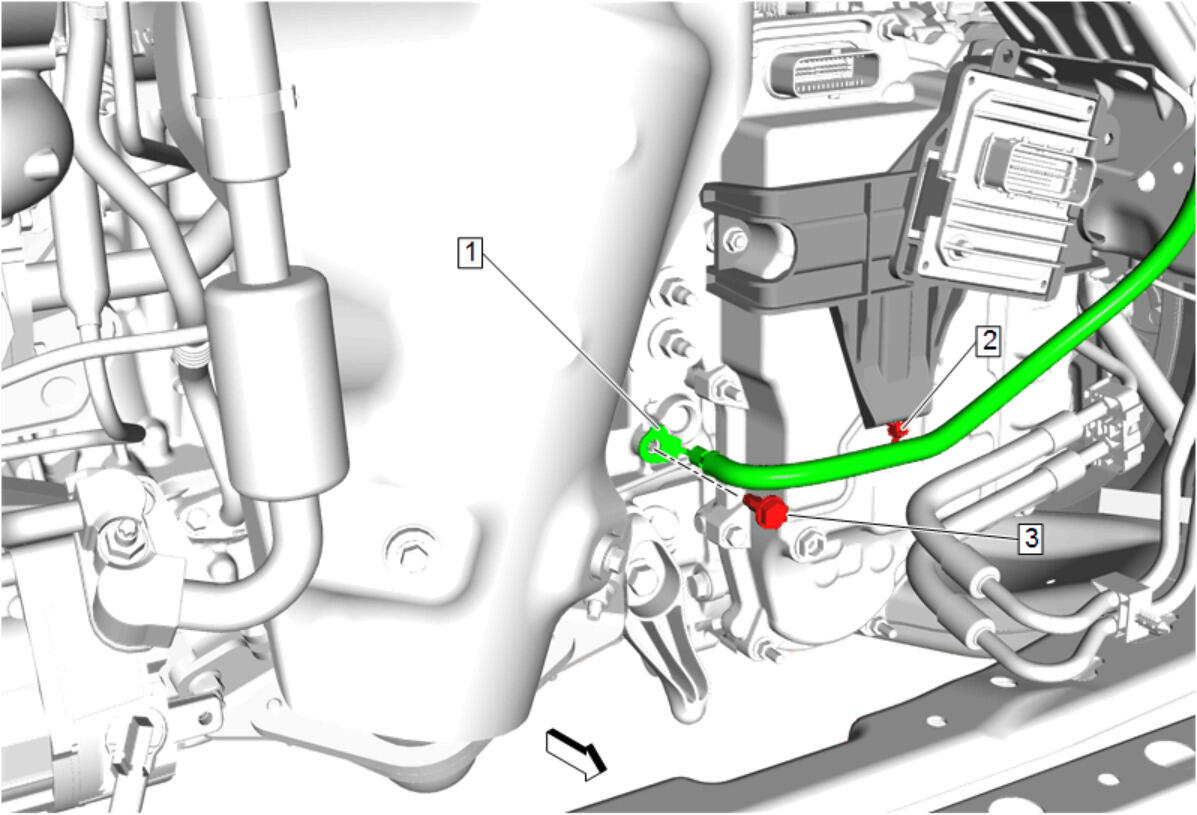

Battery Negative Cable (1) - Install
- Battery Negative Cable Ground Bolt (3) @ Transmission - Install and tighten 40 N.m (30 lb ft)
- Retainer (2) - Engage

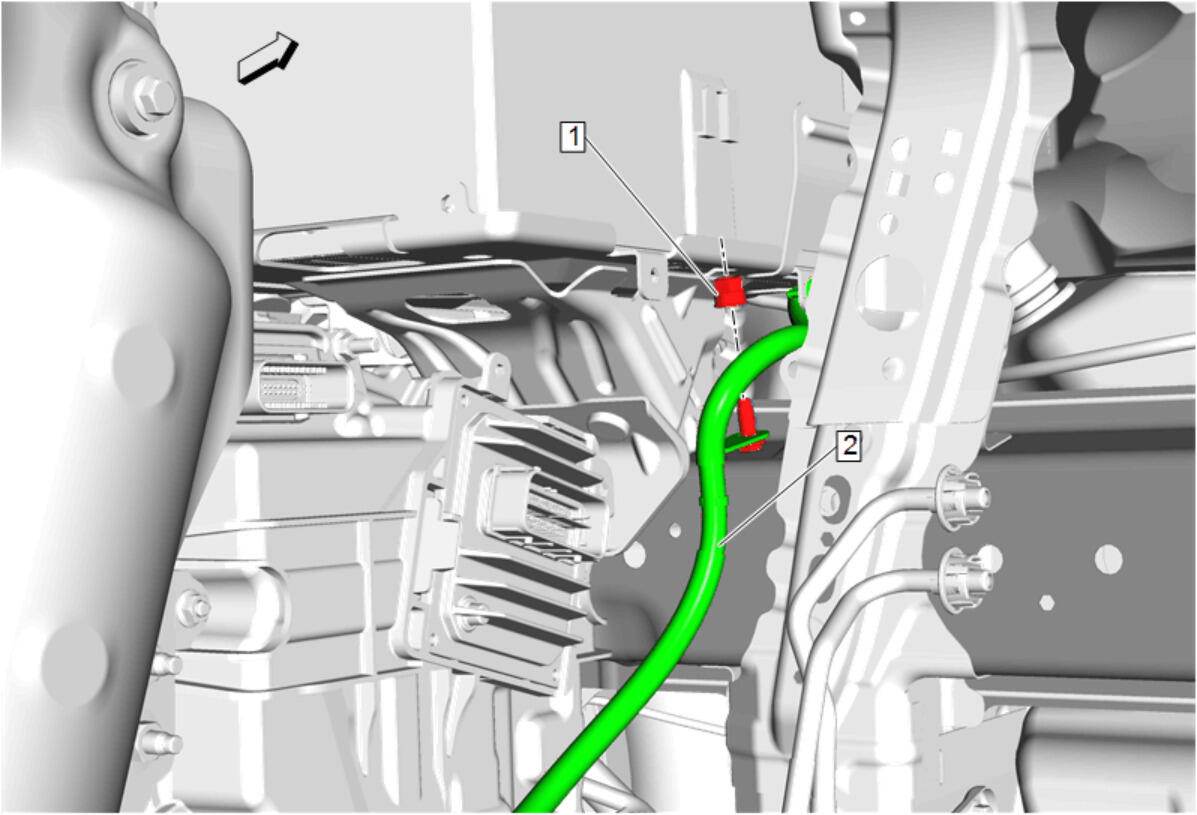

Battery Negative Cable (2) - Install
- Battery Negative Cable Ground Nut (1) @ Frame Rail - Install and tighten 9 N.m (80 lb in)

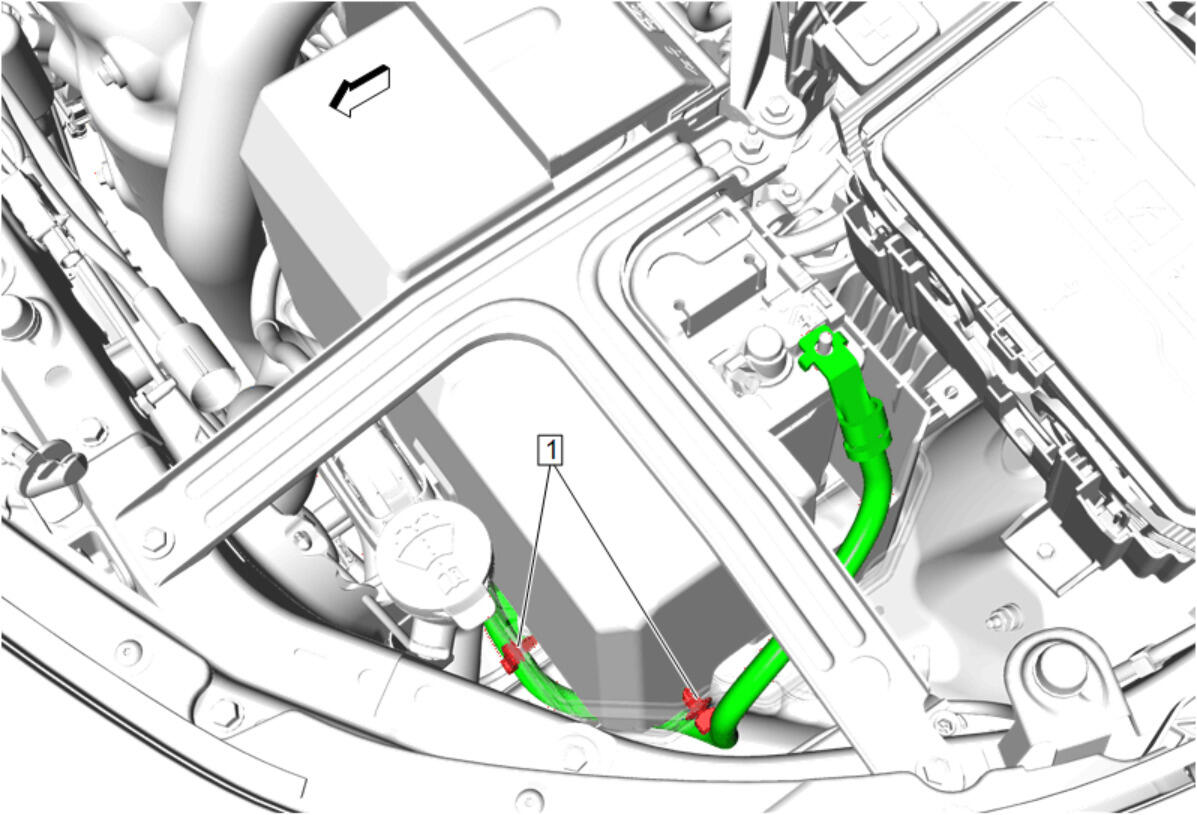

Retainer (1) - Engage [2x]

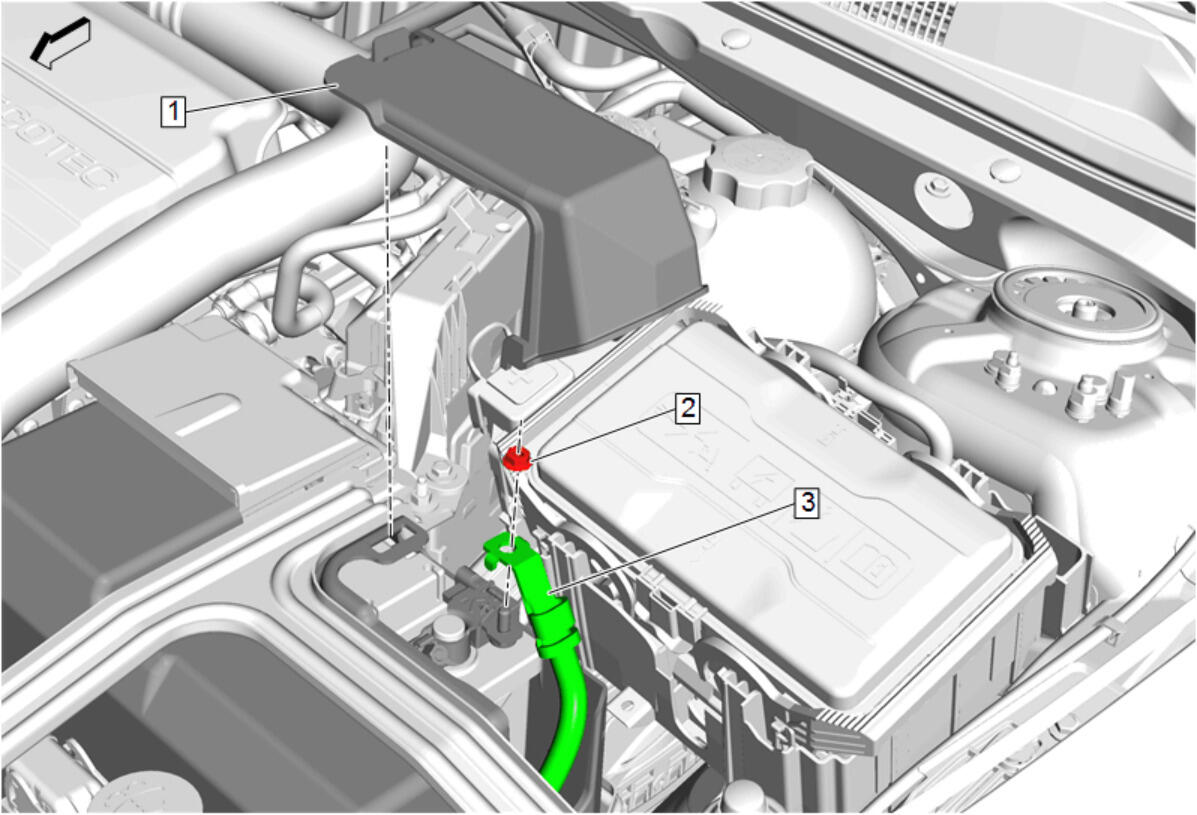

Battery Negative Cable (3) - Install
- Battery Negative Cable Nut (2) @ Battery Sensor - Install and tighten 9 N.m (80 lb in)
- Battery Negative Cable Terminal Cover (1) - Install
- Reprogram the battery monitor module. Battery Sensor Module Learn
CAUTION:
Refer to Fastener Caution
