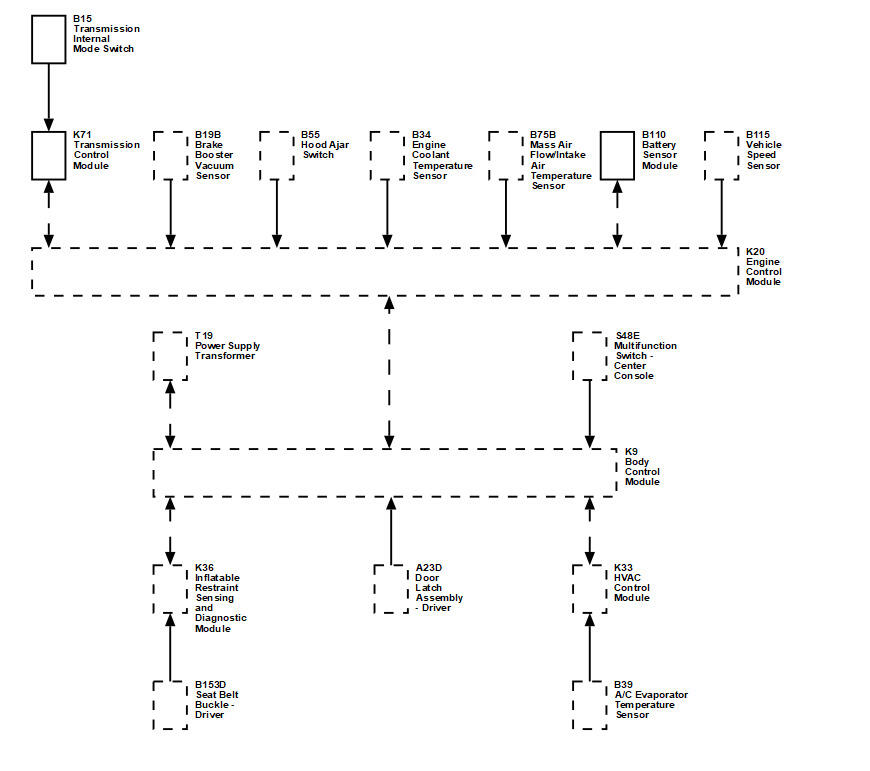

Stop/Start System Block Diagram
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| B15 | B15 Transmission Internal Mode Switch |
| K71 | K71 Transmission Control Module |
| B19B | B19B Brake Booster Vacuum Sensor |
| B55 | B55 Hood Ajar Switch |
| B34 | B34 Engine Coolant Temperature Sensor |
| B75B | B75B Mass Air Flow/Intake Air Temperature Sensor |
| B110 | B110 Battery Sensor Module |
| B115 | B115 Vehicle Speed Sensor |
| K20 | K20 Engine Control Module |
| S48E | S48E Multifunction Switch - Center Console |
| T19 | T19 Power Supply Transformer |
| K9 | K9 Body Control Module |
| K33 | K33 HVAC Control Module |
| B39 | B39 A/C Evaporator Temperature Sensor |
| A23D | A23D Door Latch Assembly - Driver |
| K36 | K36 Inflatable Restraint Sensing and Diagnostic Module |
| B153D | B153D Seat Belt Buckle - Driver |
