Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Exhaust Service Warning .

  1. Turbocharger Heat Shield Replacement - Remove
  2. Heated Oxygen Sensor Replacement - Sensor 1 - Disconnect
  3. Heated Oxygen Sensor Replacement - Sensor 2 - Disconnect

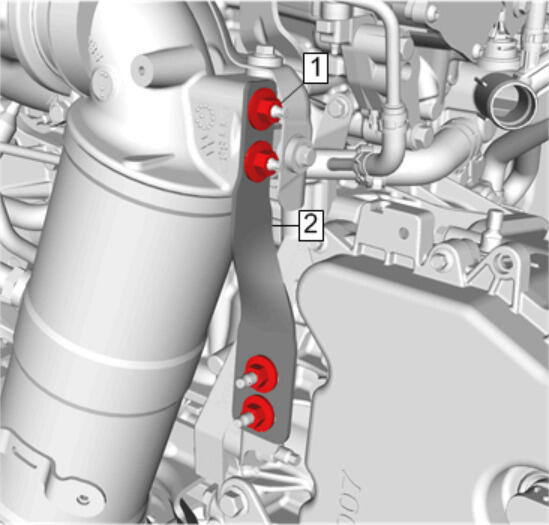

  4. GM4213336Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bracket Nut (1) - Remove [4x]

  5. Catalytic Converter Brace Bracket (2) - Remove
  6. GM3978697Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Clamp Bolt (1) - Loosen

  7. Catalytic Converter Clamp (2) - Remove
  8. Exhaust Front Pipe@Warm Up Three-Way Catalytic Converter - Disconnect - Exhaust Front Pipe Replacement (LFV)
  9. GM4213341Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bracket Nut (1) - Remove [2x]

  10. Catalytic Converter (2) - Remove
