Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Hot Exhaust System Warning .
WARNING:
Refer to Safety Glasses Warning .
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Floor Panel Tunnel Panel Front Brace (2) - Remove -
Exhaust Front Pipe Nut (1) - Remove [2x]
- Exhaust Muffler Assembly (3) Disconnect
- Exhaust Gasket (2) - Remove and DISCARD

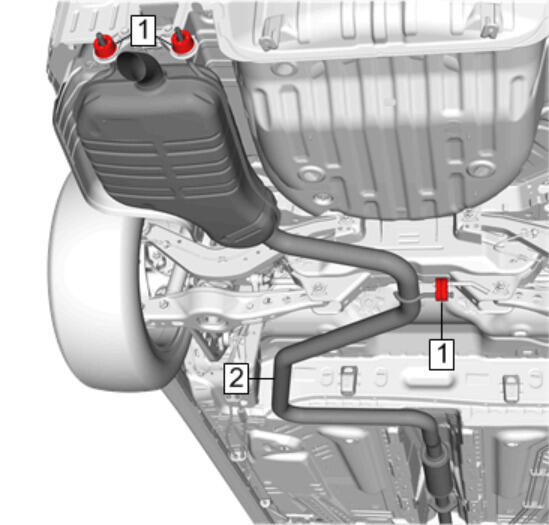

Exhaust Muffler Isolator (1) - Disconnect
- Exhaust Muffler Assembly (2) - Remove
