Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Hot Exhaust System Warning .
WARNING:
Refer to Safety Glasses Warning .

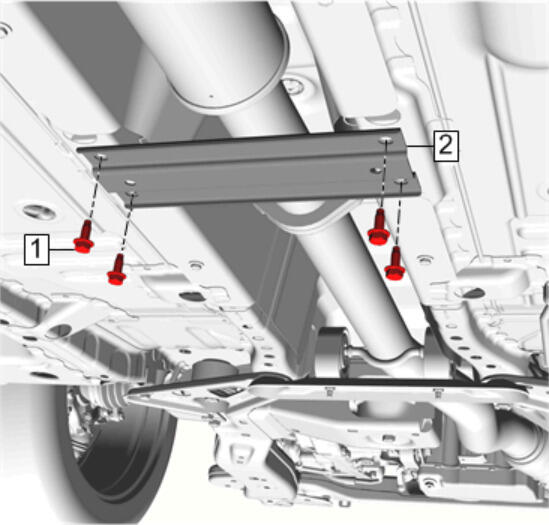

Floor Panel Tunnel Panel Front Brace (2) - Remove - Floor Panel Tunnel Panel Front Brace Replacement

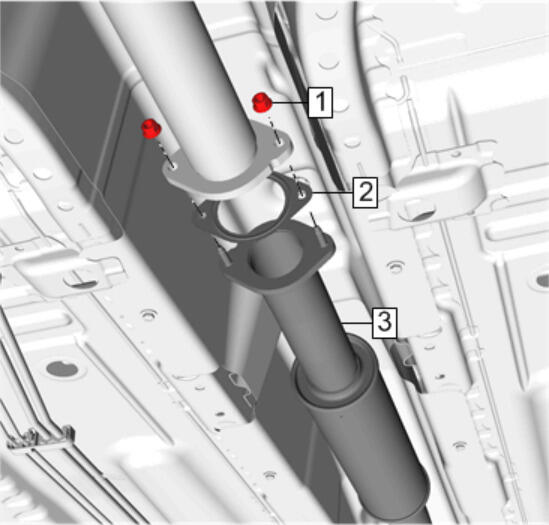

Exhaust Front Pipe Nut (1) - Remove [2x]
- Exhaust Muffler Assembly (3) Disconnect
- Exhaust Gasket (2) - Remove and DISCARD
Exhaust Muffler Isolator (1) - Disconnect
- With the aid of an assistant, carefully remove the exhaust system (2) from the vehicle.
