Exhaust Muffler Heat Shield Replacement - Right Side
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

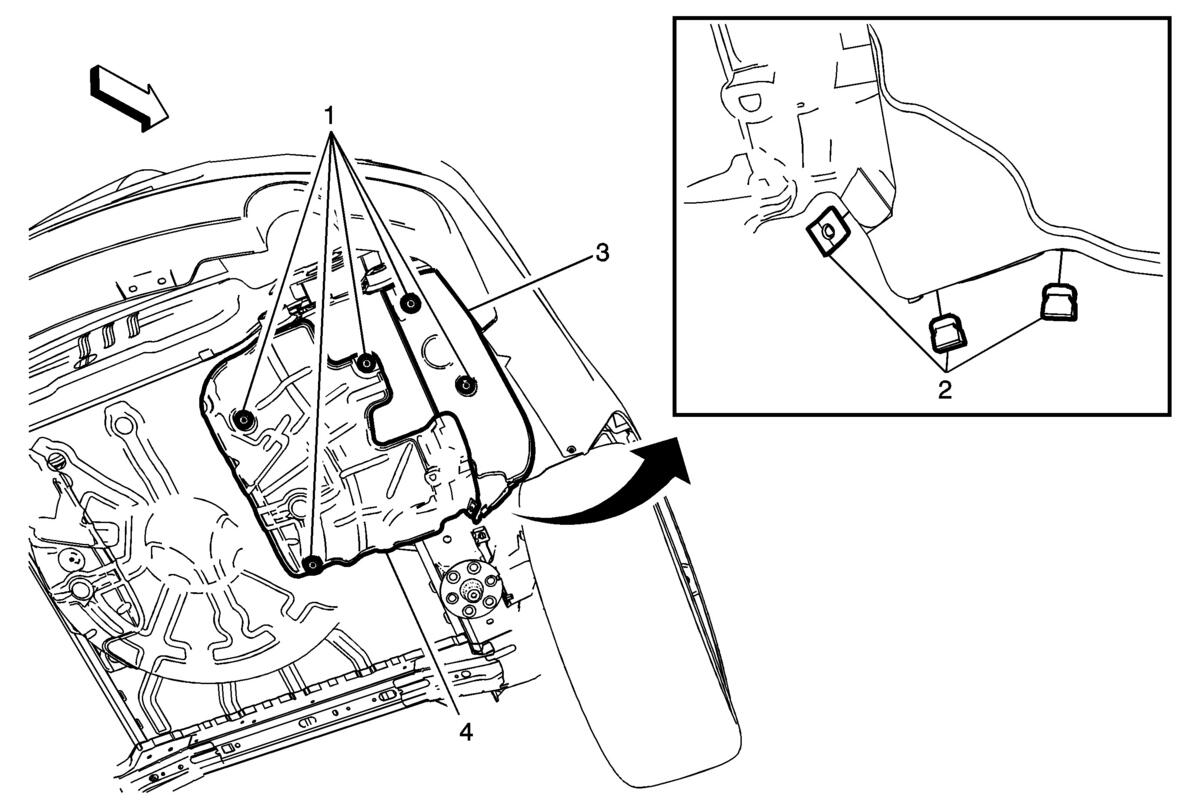

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Hot Exhaust System Warning .
WARNING:
Preliminary Procedure Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (Dual Exhaust) , or Exhaust Muffler Replacement (Single Exhaust) .Refer to Moving Parts and Hot Surfaces Warning . |
|
| 1 | Heat Shield Retainers (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Retainer Clips (Qty: 3) |
| 3 | Exhaust Muffler Heat Shield - Outer |
| 4 | Exhaust Muffler Heat Shield - Inner |
