Exhaust Muffler Heat Shield Replacement - Left Side
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

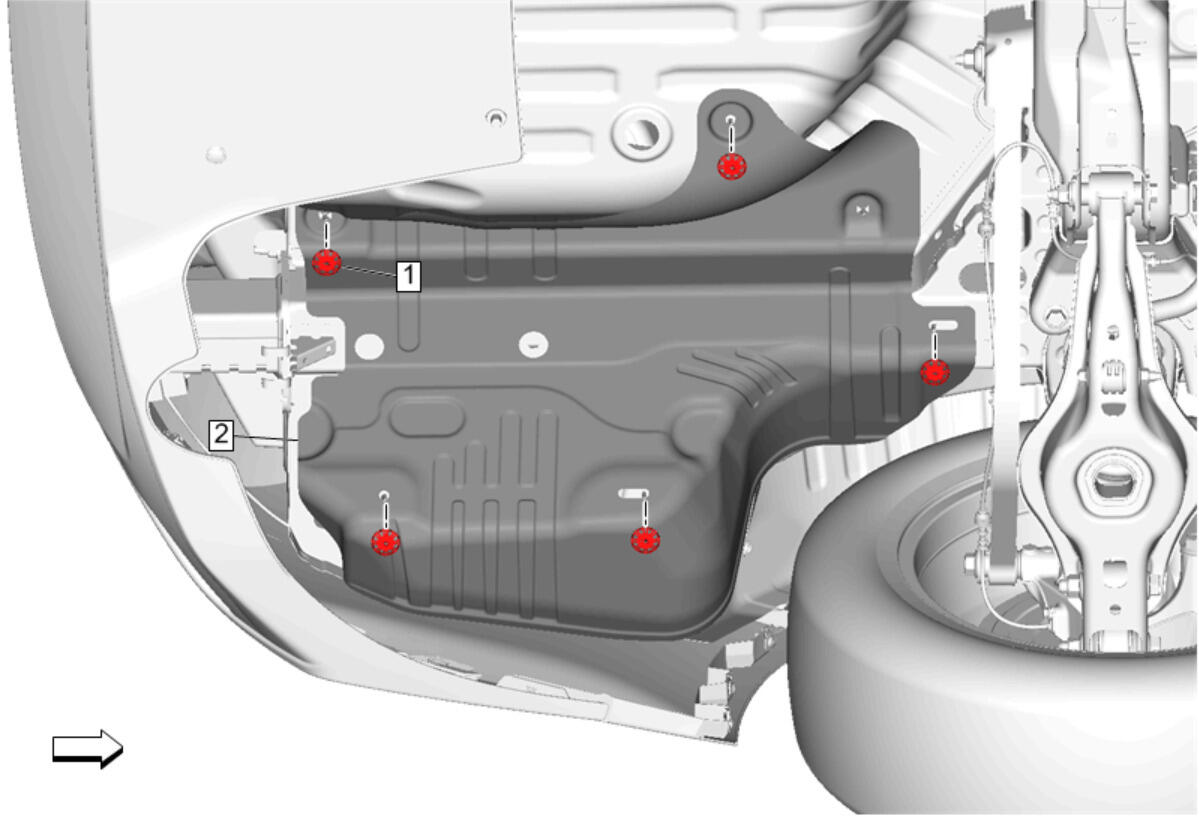

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Hot Exhaust System Warning .
WARNING:
Preliminary Procedure Remove the exhaust muffler. Exhaust Muffler Replacement (Dual Exhaust) , or Exhaust Muffler Replacement (Single Exhaust) Refer to Moving Parts and Hot Surfaces Warning . |
|
| 1 | Exhaust Heat Shield Retainer [5x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Exhaust Muffler Heat Shield |
