Exhaust Intermediate Underbody Heat Shield Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

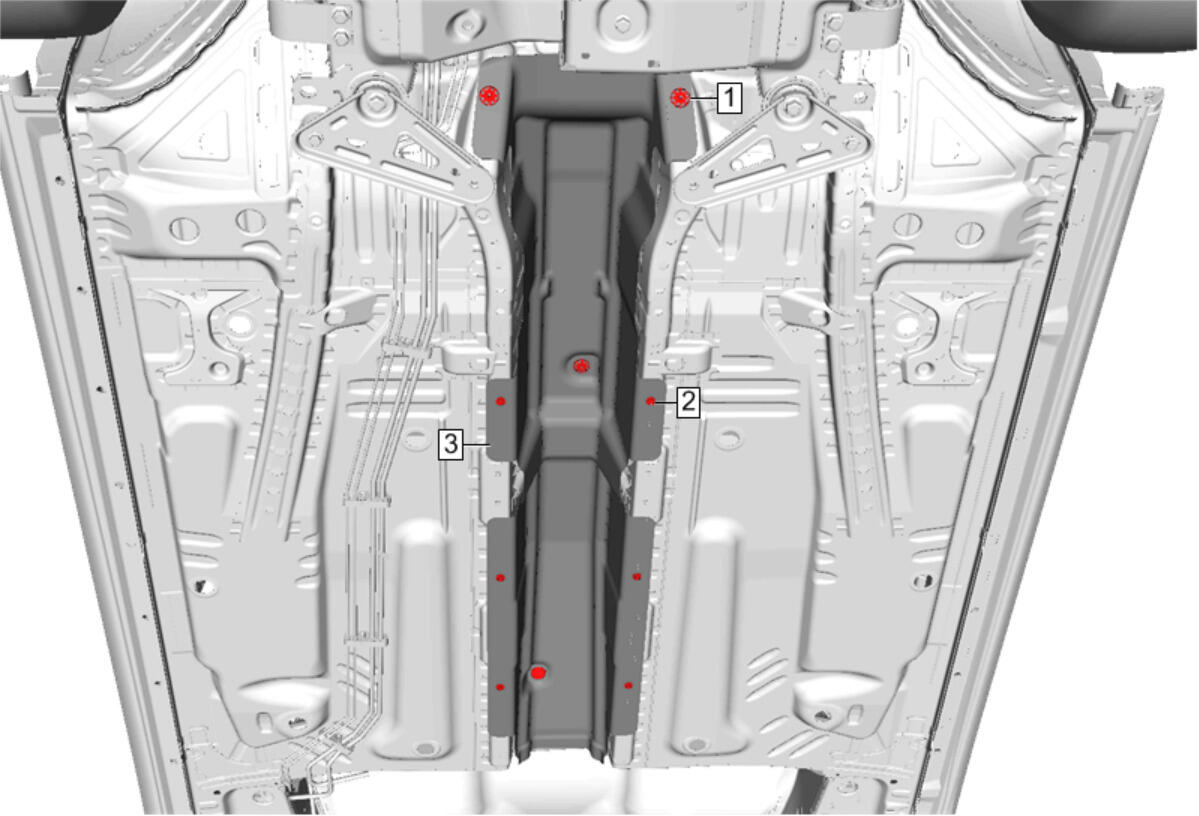

GM4328233Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

Preliminary Procedures

  1. Exhaust Front Pipe Replacement (LTG) , or Exhaust Front Pipe Replacement (LFV) , or Exhaust Front Pipe Replacement (LKN)
  2. Exhaust Muffler Replacement (Dual Exhaust) , or Exhaust Muffler Replacement (Single Exhaust)
1 Exhaust Intermediate Underbody Heat Shield Retainer [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Exhaust Intermediate Underbody Heat Shield Bolt [6x]
Tighten
9 N.m (80 lb in)
3 Exhaust Intermediate Underbody Heat Shield
