Catalytic Converter Brace Bracket Replacement (LTG)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

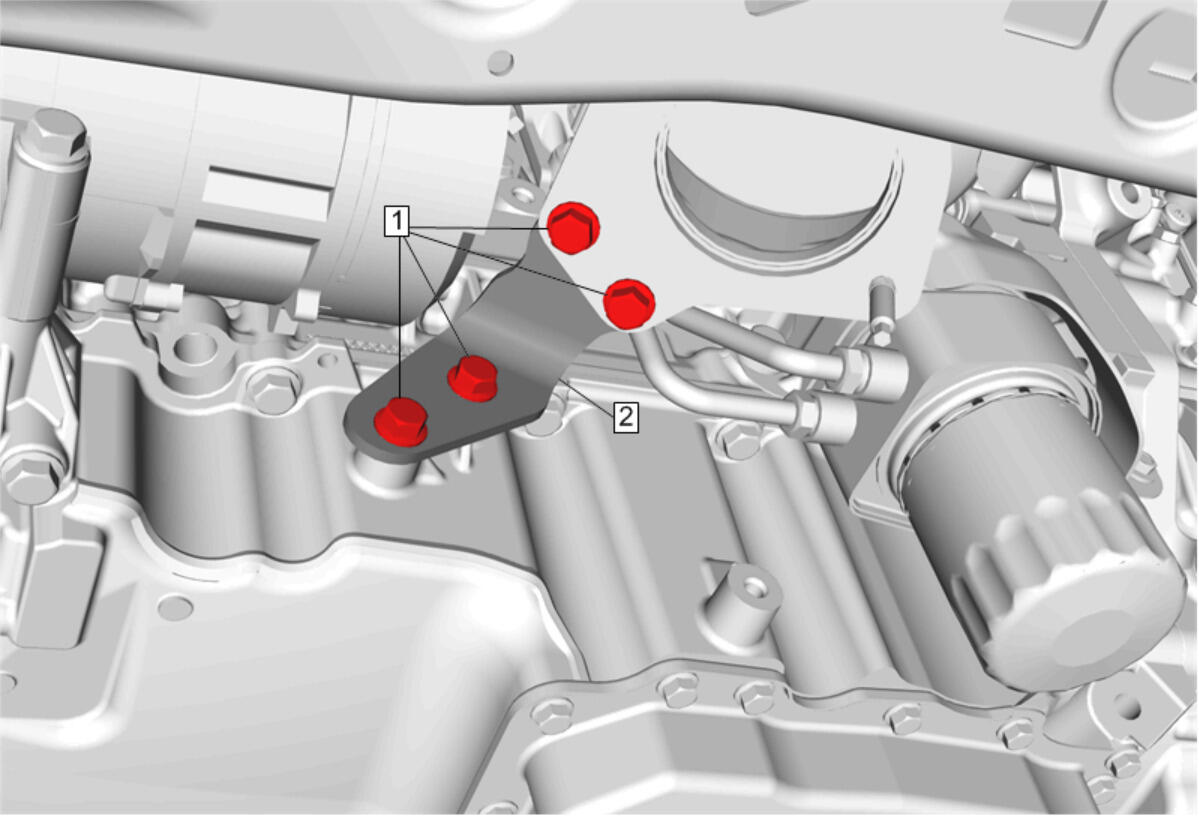

Callout	Component Name
Preliminary Procedures Lifting and Jacking the Vehicle Exhaust Front Pipe Replacement (LTG)
1	Exhaust Pipe Front Hanger Bracket Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Catalytic Converter Brace Bracket

Callout

Component Name

Preliminary Procedures

Lifting and Jacking the Vehicle
Exhaust Front Pipe Replacement (LTG)

Exhaust Pipe Front Hanger Bracket Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Catalytic Converter Brace Bracket
