Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

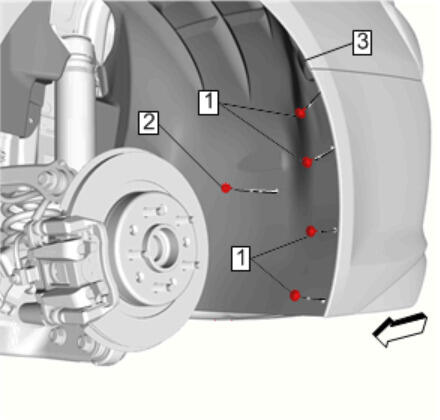

  1. GM4213611Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Liner (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Rear Wheelhouse Liner Screw (1) - Install and tighten [4X] 2.5 N.m (22 lb in)
  3. Rear Wheelhouse Liner Bolt (2) - - Install and tighten2.5 N.m (22 lb in)

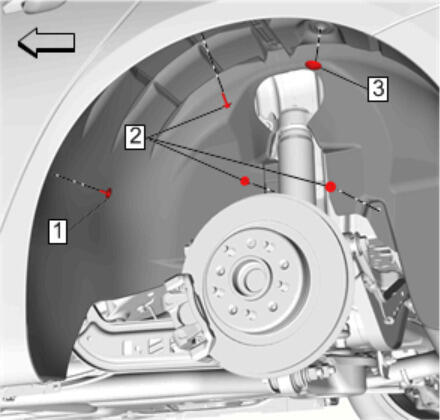

  4. GM4213609Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Liner Screw (1) - Install and tighten2.5 N.m (22 lb in)

  5. Rear Wheelhouse Liner Bolt (2) - Install and tighten [3X] 2.5 N.m (22 lb in)
  6. Rear Wheelhouse Liner Retainer (3) Install
  7. Tire and Wheel Removal and Installation - Install
