Rear Tire Front Air Deflector Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

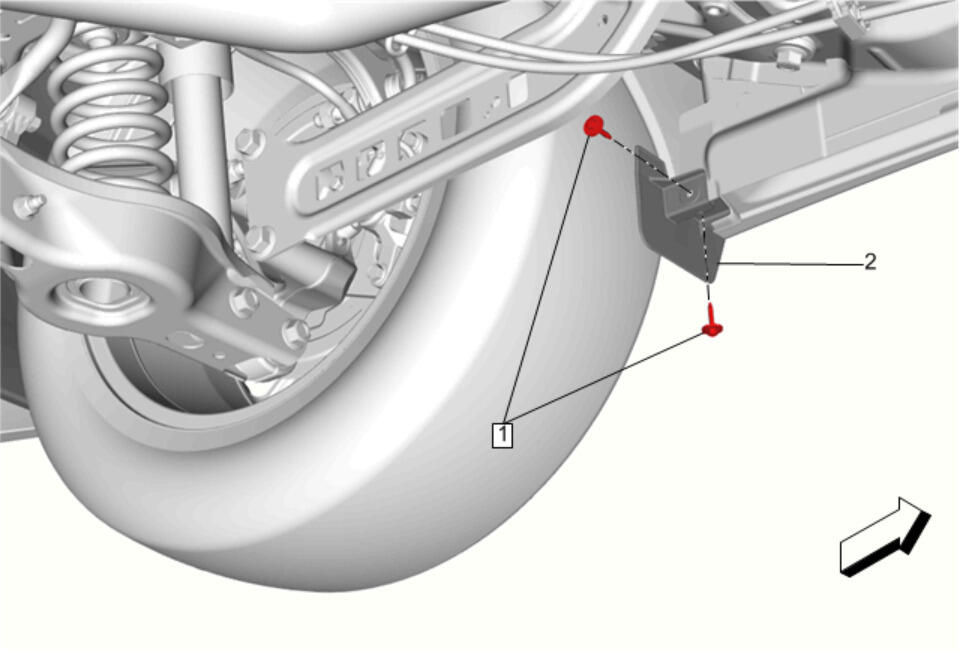

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Rear Tire Front Air Deflector Fastener [2X]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Tire Front Air Deflector |
