Front Wheelhouse Liner Replacement - Right Side (LFV, LTG): Notes

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation
Underbody Front Air Deflector - Remove - Underbody Front Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

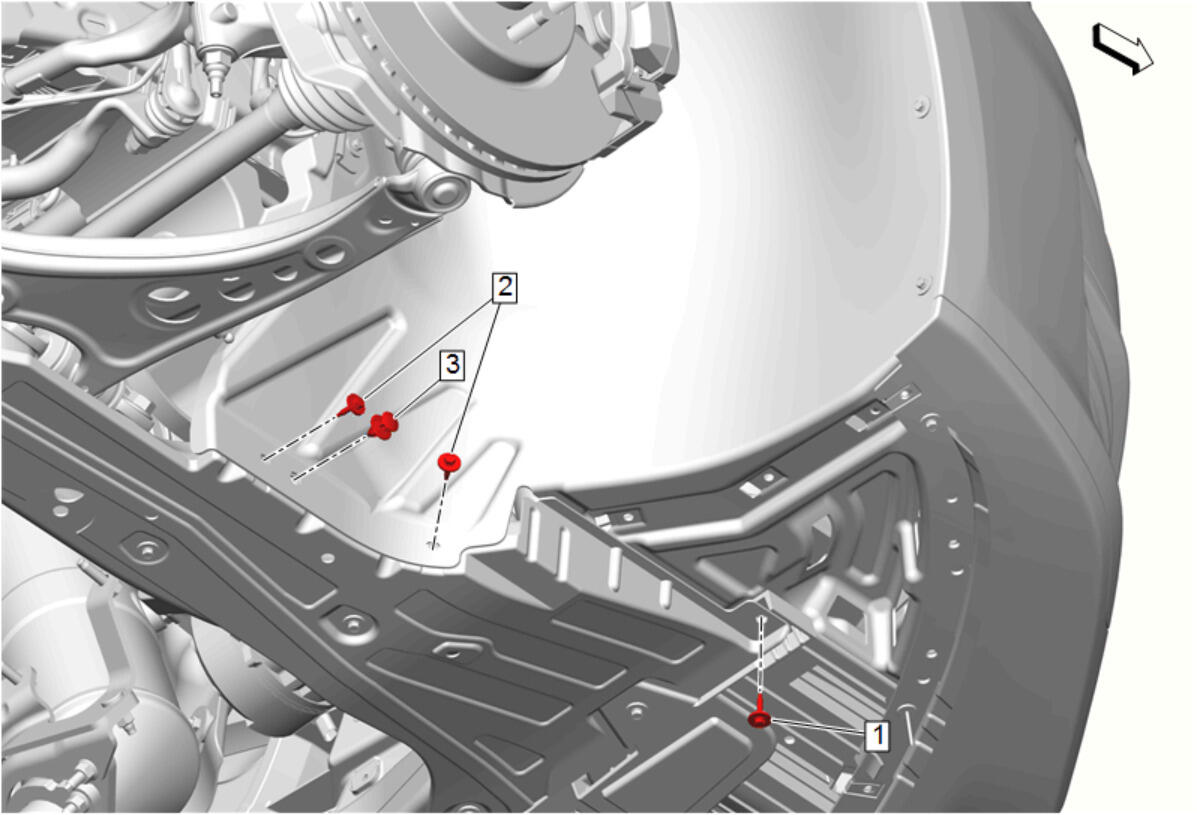

Front Compartment Splash Shield Bolt (1) - Remove - Front Compartment Splash Shield Replacement
Front Wheelhouse Liner Screw (2) - Remove [2x] - Front Compartment Splash Shield Replacement
Retainer (3) - Remove - Front Compartment Splash Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector (2) - Remove - Front Bumper Fascia Center Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Front Splash Shield (4) - Remove - Engine Front Splash Shield Replacement (LFV, LTG)
Courtesy of GENERAL MOTORS COMPANY

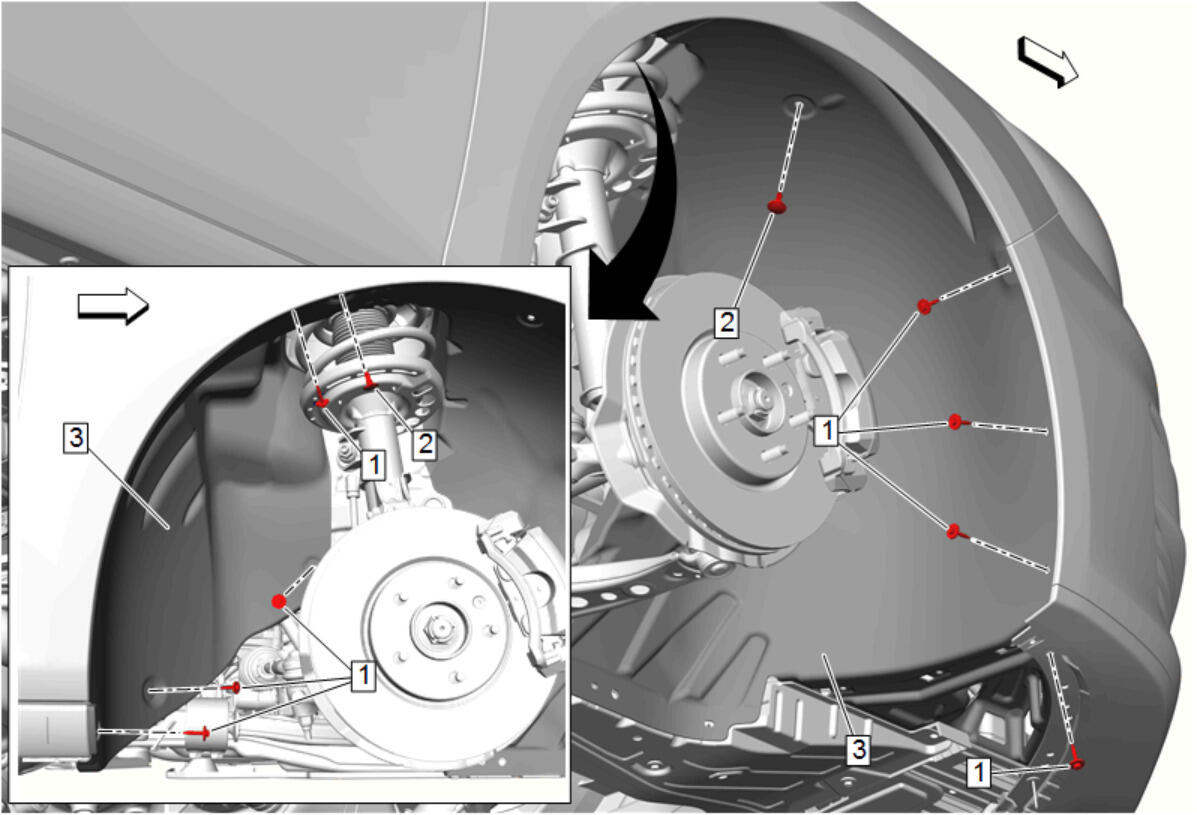

Front Wheelhouse Liner Bolt (1) - Remove [8x]
Front Wheelhouse Liner Retainer (2) - Remove [2x]
Front Wheelhouse Liner - Right Side (3) - Remove
