Front Cradle Mount Bolt Bracket Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

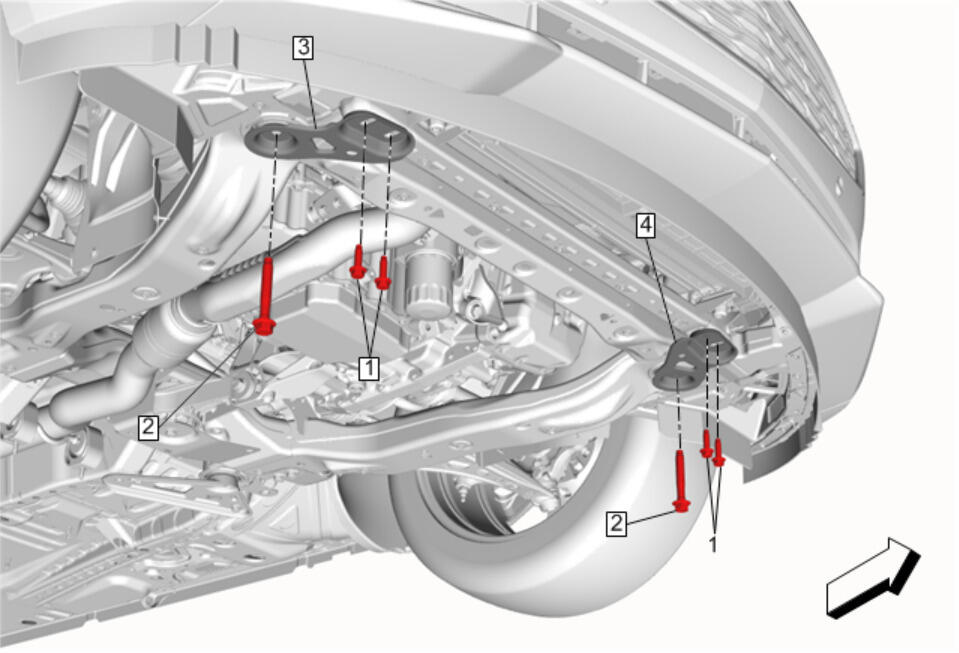

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Front Compartment Splash Shield Replacement Front Compartment Air Deflector Replacement Underbody Front Air Deflector Replacement Support the front cradle with a suitable jack.
1	Front Cradle Mount Bolt Bracket Bolt [4X] CAUTION: Refer to Fastener Caution Tighten 58 N.m (43 lb ft)
2	Front Cradle Mount Bolt Bracket Bolt [2X] Tighten 160 N.m (118 lb ft)
3	Front Cradle Mount Bolt Bracket - Right Side
4	Front Cradle Mount Bolt Bracket - Left Side
