Front Cradle Brace Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

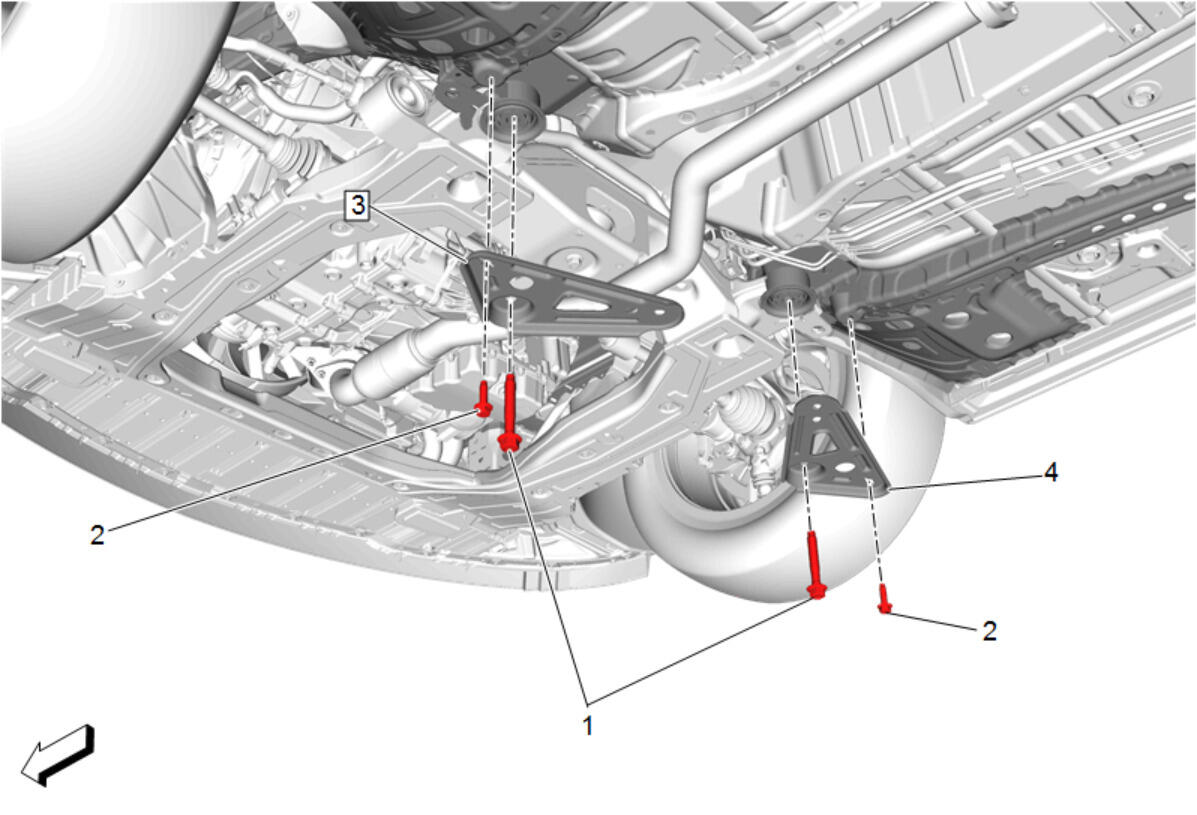

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle Exhaust Front Bracket Replacement (LKN) Support the front cradle with a suitable jack.
1	Drivetrain and Front Suspension Cradle Rear Bolt [2x] CAUTION: Refer to Fastener Caution Tighten 160 N.m (118 lb ft)
2	Front Cradle Mount Bolt Bracket Bolt [2x] Tighten 58 N.m (43 lb ft)
3	Front Cradle Brace-Left Side
4	Front Cradle Brace-Right Side
