Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

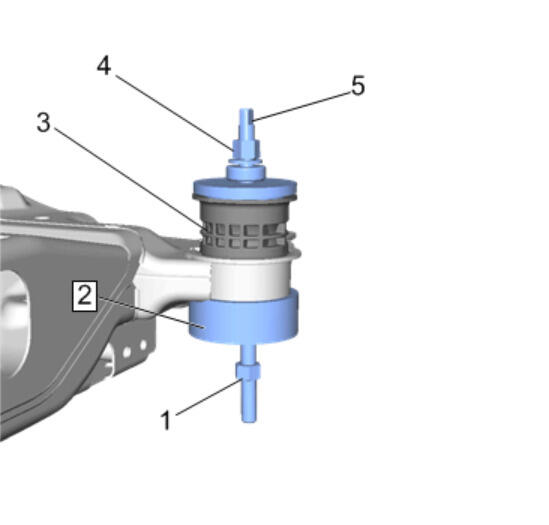

Install the CH-45725 - A Bushing Mount Replacer as shown.
- Center the threaded rod (5) through the mount and cradle.
- Hand tighten the nut (1) against the cylinder (2).
- Align the NEW mount (3) to the inner wall of the cradle, making sure the rod (5) is perpendicular to the cradle.
- Hold the end of the rod (5), with a suitable tool, while slowly turning the nut (4).
- Slowly press the cradle mount (3) into the drivetrain and front suspension cradle.
Drivetrain and Front Suspension Cradle (1) - Install - Drivetrain and Front Suspension Cradle Replacement (LFV) Drivetrain and Front Suspension Cradle Replacement (LKN) Drivetrain and Front Suspension Cradle Replacement (LTG)
