Front Bumper Fascia Support Brace Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

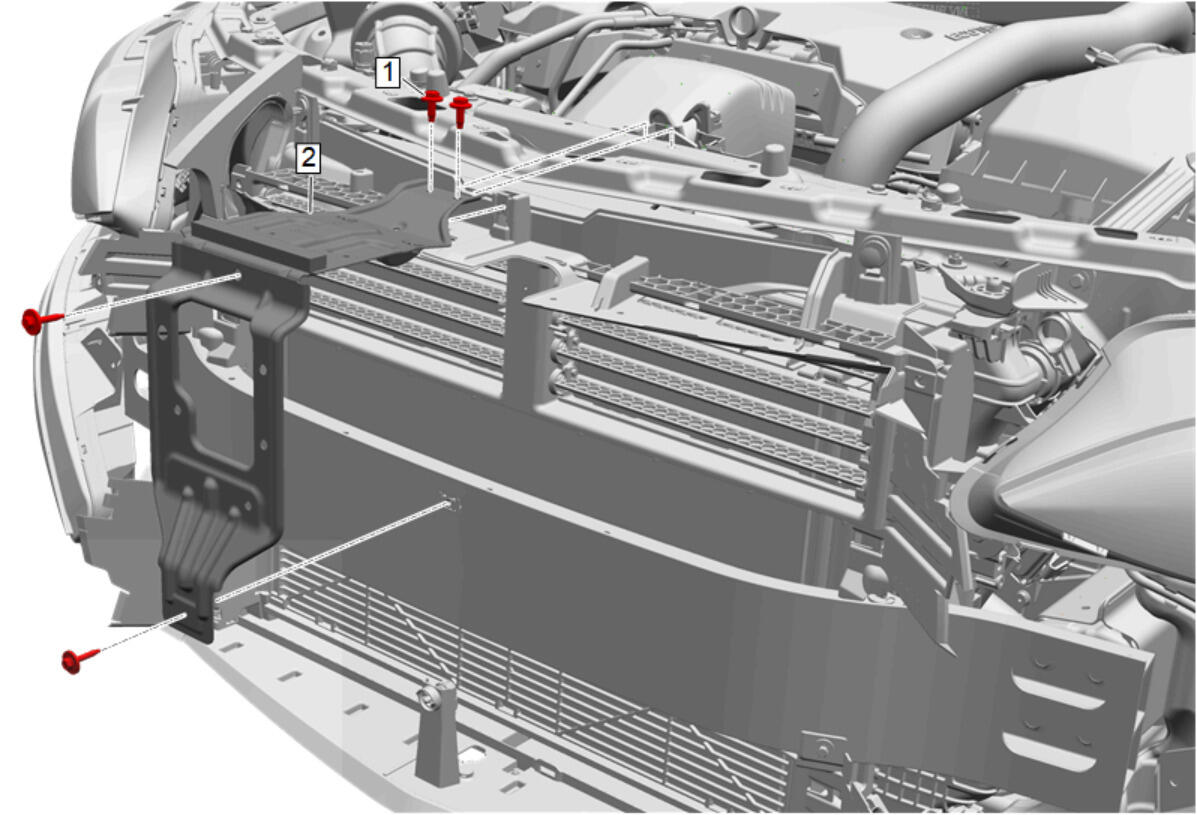

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Hood Secondary Latch Replacement
1	Front Bumper Fascia Support Brace Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Support Brace Procedure Slide the front bumper fascia support brace from the radiator air upper deflector.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Replacement
Hood Secondary Latch Replacement

Front Bumper Fascia Support Brace Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Bumper Fascia Support Brace
Procedure
Slide the front bumper fascia support brace from the radiator air upper deflector.
