Rear Side Door Window Garnish Molding Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

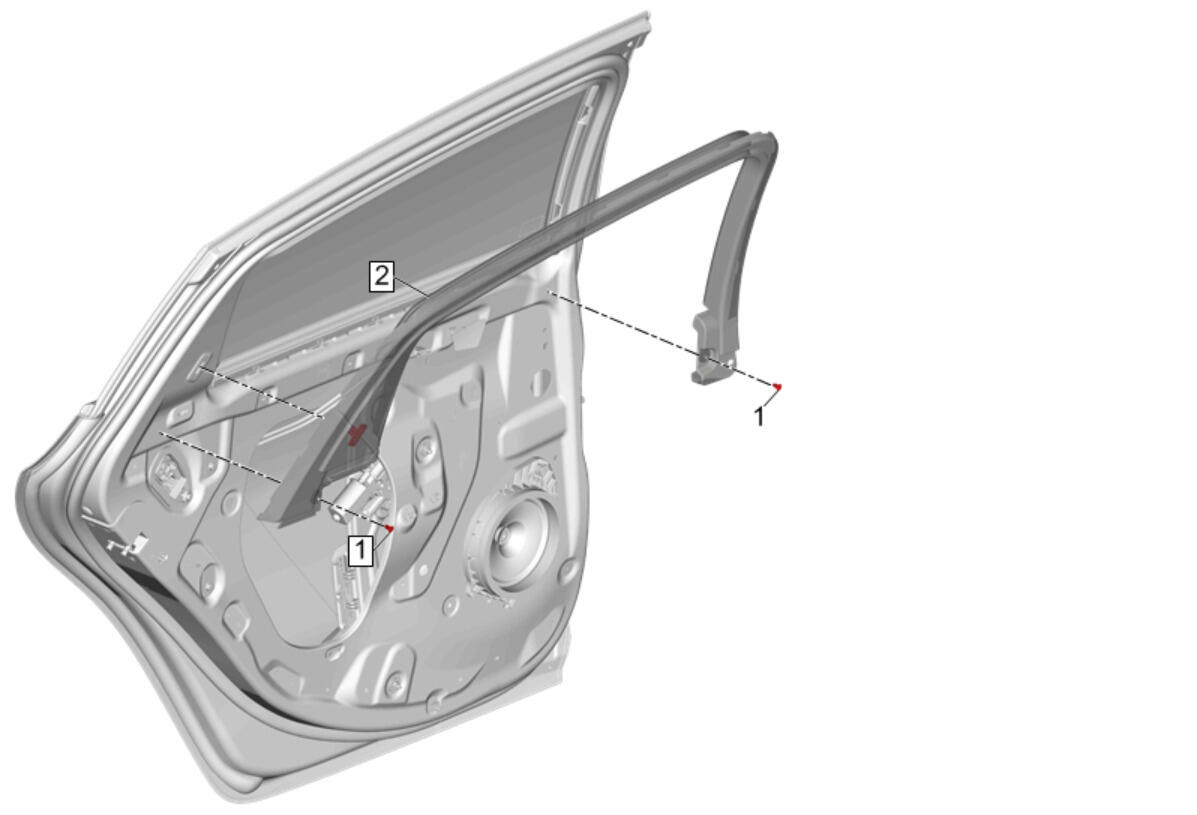

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement
1	Rear Side Door Window Garnish Molding Retainer[2x]
2	Rear Side Door Window Garnish Molding Procedure Use a flat-bladed plastic tool to remove the push-in retainers. Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.

Callout

Component Name

Preliminary Procedure
Rear Side Door Trim Replacement

Rear Side Door Window Garnish Molding Retainer[2x]

Rear Side Door Window Garnish Molding

Procedure

Use a flat-bladed plastic tool to remove the push-in retainers.
Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.
