Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

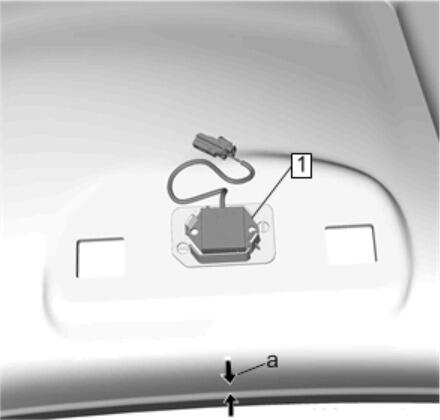

Active Noise Cancellation Microphone (1) - Install
- Connect the electrical connector.
- NOTE:
- The felt tape covering the microphone and brackets is single use. Please discard the used tape and apply new tape over the microphones and brackets before re-installing the headliner.
- The felt tape is NOT applied flush to the outboard side of the active noise cancellation bracket. There should be a ramp provided by the tape on the outboard side.
- The tape is to be applied flush to the side of the bracket on every side EXCEPT the outboard edge, where the "ramp" is maintained.
Cut a piece of felt tape and attach the bottom edge of the tape, leaving 5 mm (0.20 in) of gap between the edge of the tape and the crease in the headliner. (a)
- Apply the tape to the headliner up until the base of the active noise cancellation bracket, then to the top of the active noise cancellation microphone/bracket. (1)
- Fold the tape over the inboard side of the bracket and on the fore/aft edges of the bracket.
- Headlining Trim Panel Replacement (With Sunroof) , or Headlining Trim Panel Replacement (Without Sunroof) - Install
