Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

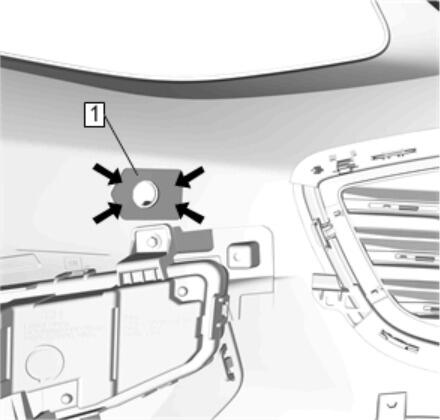

Clean the repair area (1) with Fusor™ 703 cleaner or equivalent.
- Apply structural adhesive, Fusor™ 127EZ or equivalent, to fascia mating surface (1) according to manufacturer's directions.

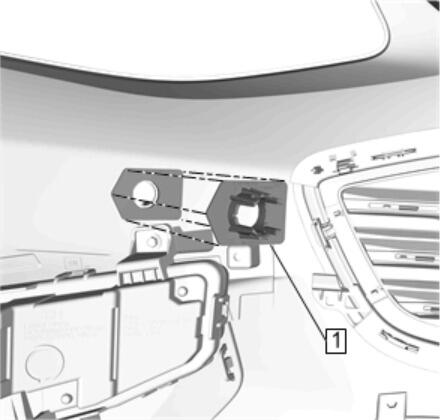

Using the alignment tabs / outline, install the sensor bracket (1) to the fascia.
- Use care to avoid excess material squeezing out around sensor bracket (1).
- Lightly clamp, tape or apply a weight to the sensor bracket (1) to hold it in place until adhesive cures.
- Allow adhesive to cure according to manufacturer's directions.

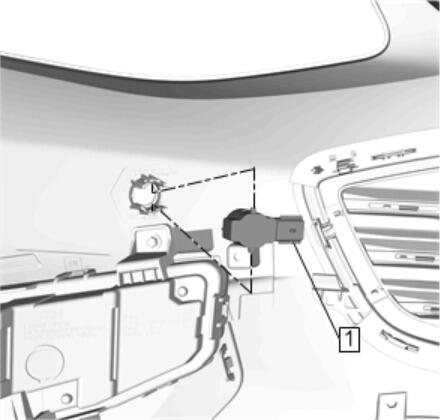

Install the sensor 1 to the sensor bracket.
- Attach the wiring harness and connect the electrical connectors as necessary.
- Front Bumper Fascia - Install Front Bumper Fascia Replacement .
