Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

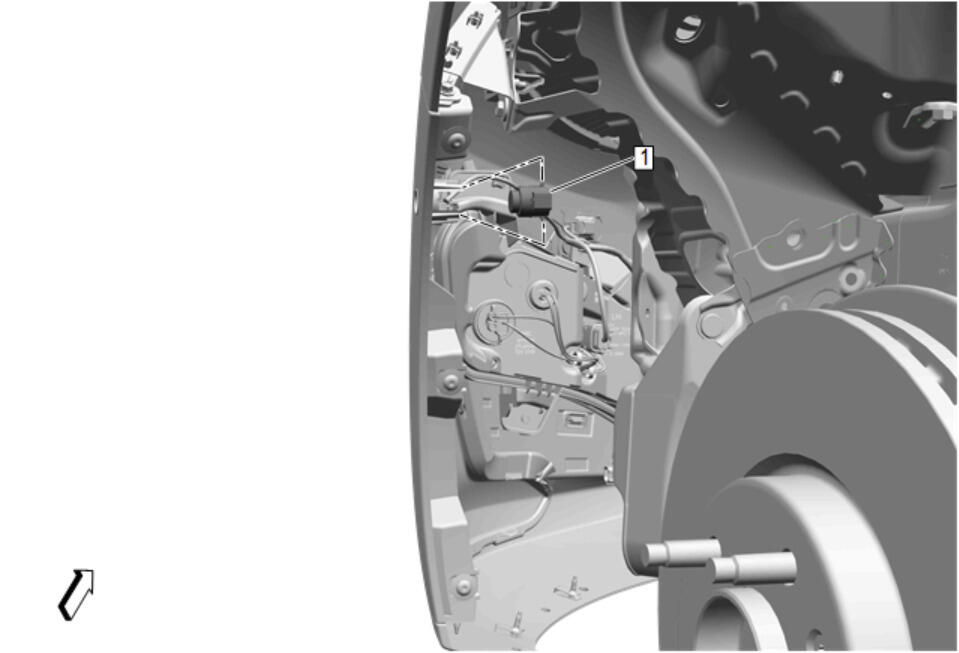

Install the advanced parking assist alarm sensor (1) into the housing.
Connect the electrical connector.
Install the appropriate front wheelhouse liner:
- For left side refer to Front Wheelhouse Liner Replacement - Left Side .
- For right side refer to Front Wheelhouse Liner Replacement - Right Side (LFV, LTG)Front Wheelhouse Liner Replacement - Right Side (LKN) .
