Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

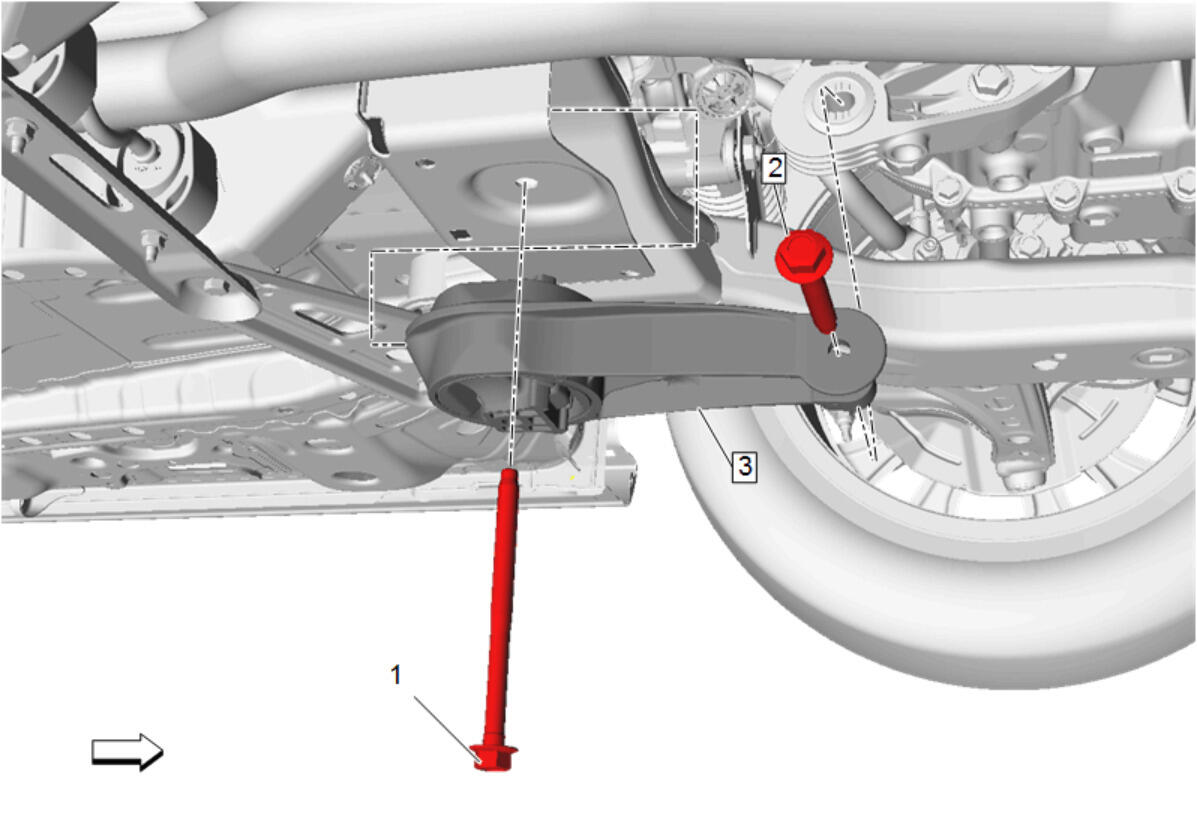

  1. GM5109196Courtesy of GENERAL MOTORS COMPANY

    Install the transmission mount strut (3) to the vehicle.

    2. CAUTION:

    Refer to Fastener Caution .

    CAUTION:

    Torque-to-Yield Fastener Warning

  2. Install and tighten the NEW transmission mount strut bolt (1).
    1. First Pass:100 N.m (74 lb ft)
    2. Final Pass:120 - 135 degrees
  3. Install and tighten the NEW transmission rear mount bolt (2).
    1. First Pass:70 N.m (52 lb ft)
    2. Final Pass:90 - 105 degrees
  4. Remove the jack stand.
  5. Lower the vehicle.
