Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Using a suitable jack stand, support the rear of the powertrain.

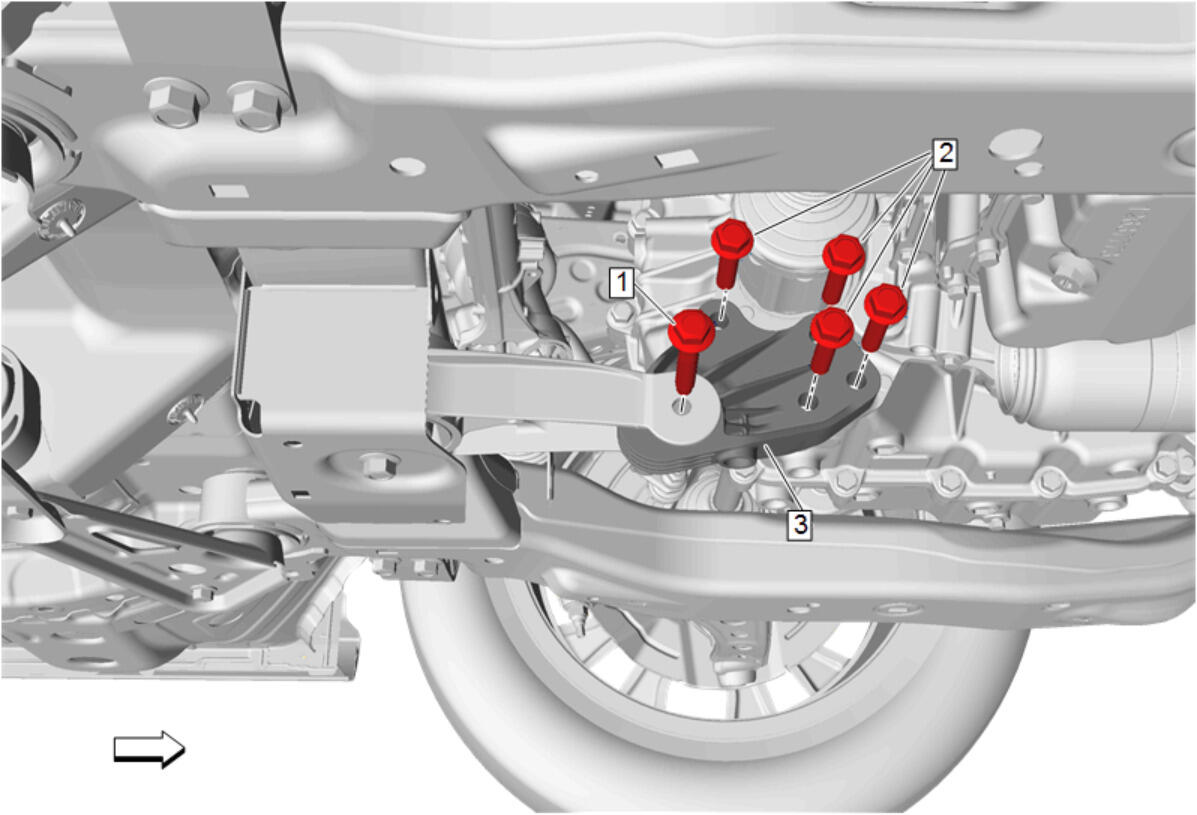

  3. GM5109529Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the transmission rear mount bolt (1).

  4. Remove and DISCARD the 4 transmission rear mount bracket bolts (2).
  5. Remove the transmission rear mount bracket. (3).
