Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery tray. Battery Tray Replacement (LFV)
  2. Remove the engine wiring harness fuse block bracket. Engine Wiring Harness Fuse Block Bracket Replacement
  3. Install the engine support fixture. See ENGINE SUPPORT FIXTURE

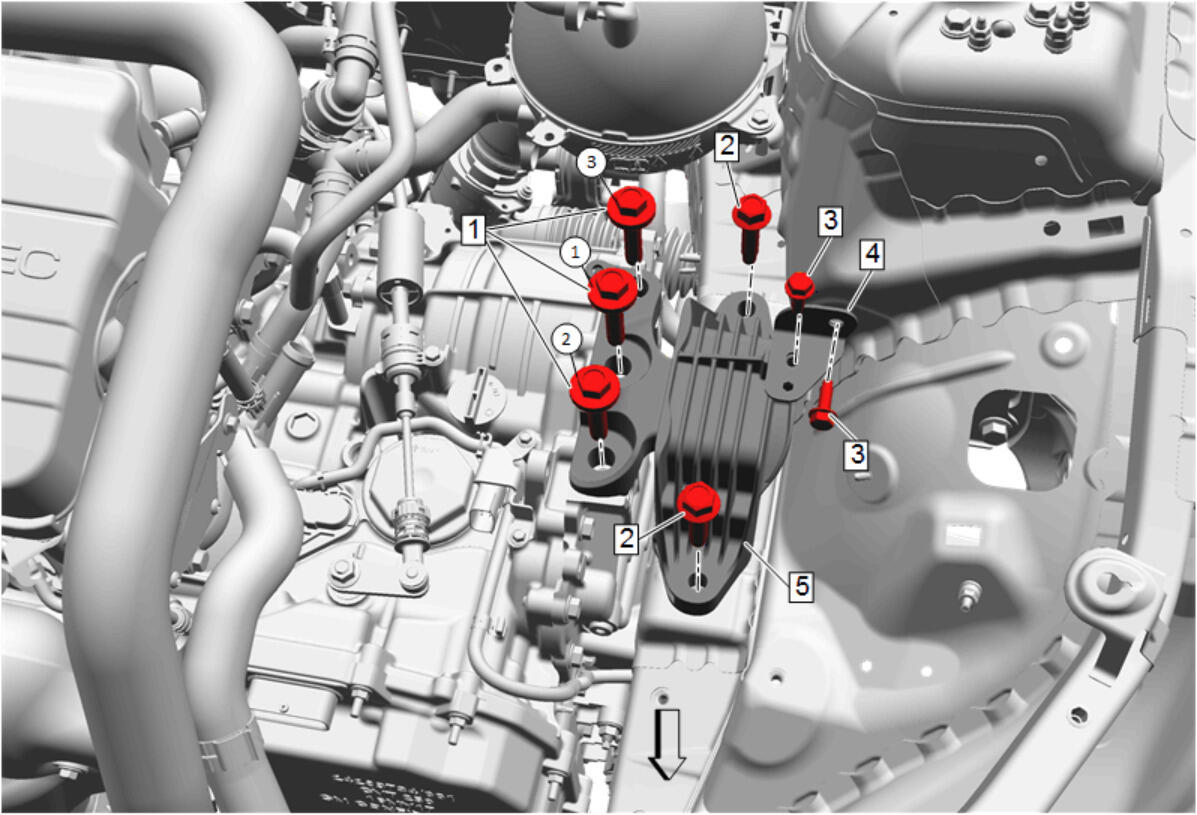

  4. GM5118178Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the 3 transmission mount transmission side bolts (1).

  5. Remove the 2 transmission mount bolts (2).
  6. Remove the 2 engine mount brace bolts (3).
  7. Remove the engine mount brace (4)
  8. Remove the transmission mount (5).
