Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

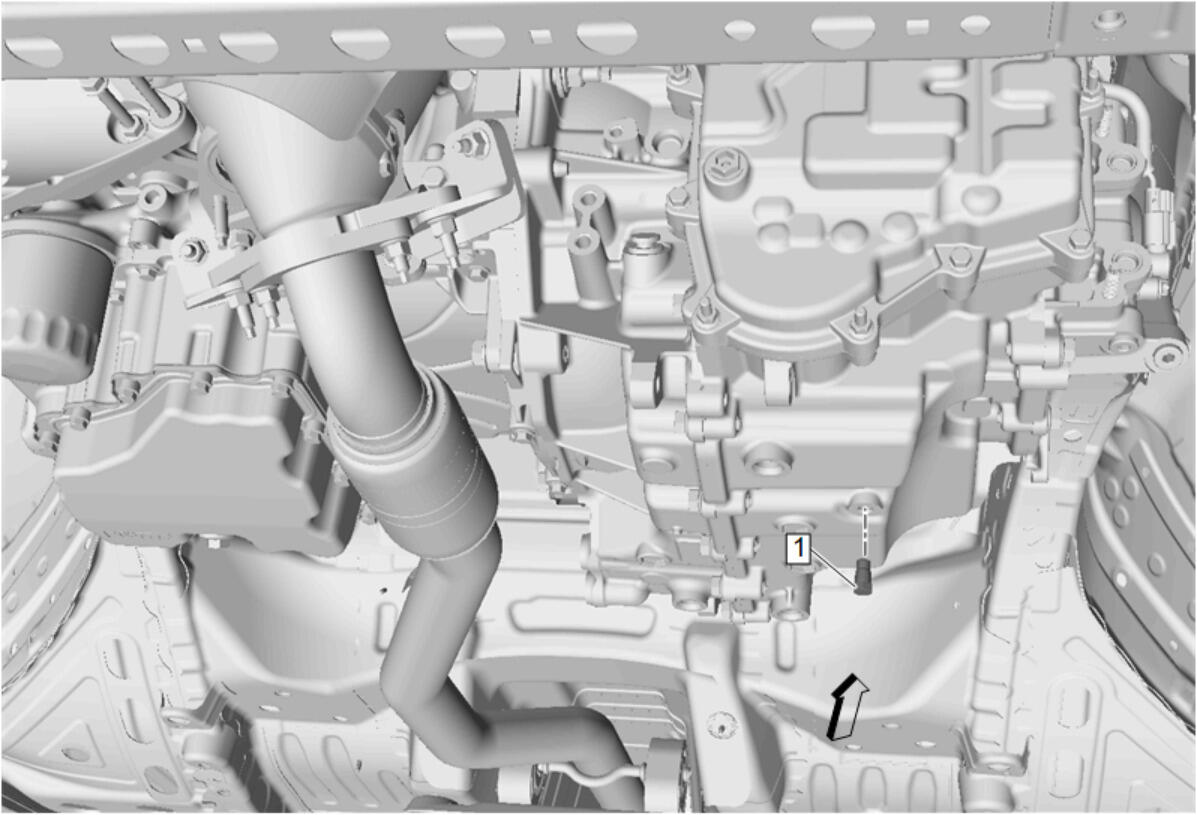

  2. GM5112453Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Drain Plug (1) - Remove

  3. Drain transmission fluid into a suitable container.
    4. CAUTION:

    Component Fastener Tightening Caution

  4. Transmission Fluid Drain Plug (1) - Install and tighten 10.5 N.m (93 lb in)
