Range Selector Lever Cable Lever Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

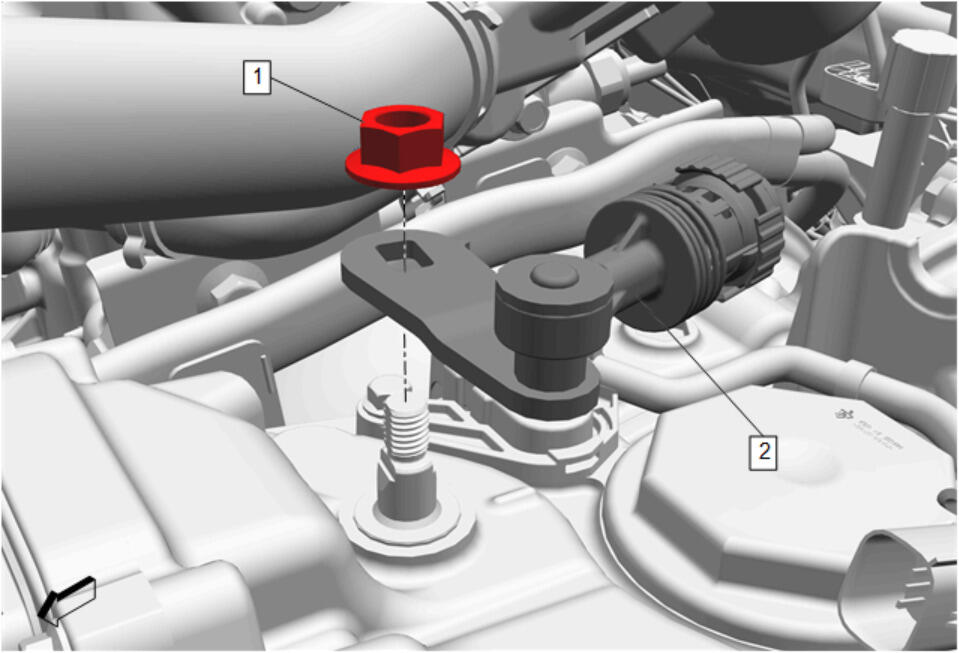

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the range selector lever cable from the range selector lever cable lever and the range selector lever cable bracket. Range Selector Lever Cable Replacement |
|
| 1 | Automatic Transmission Range Selector Lever Nut
WARNING:
Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.
CAUTION:
Tighten 30 N.m (22 lb ft) |
| 2 | Range Selector Lever Cable Lever Procedure After installing the range selector lever cable, perform a range selector lever cable adjustment. Range Selector Lever Cable Adjustment |
