Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual shift detent lever shaft assembly. Manual Shift Detent Lever Shaft Replacement

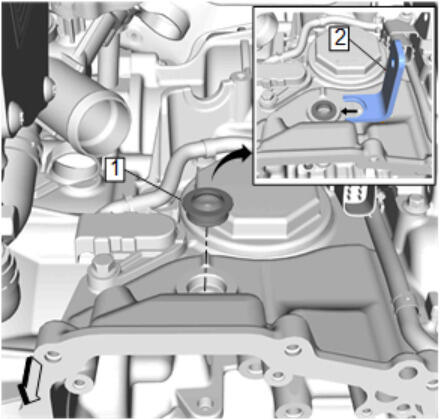

  2. GM4971100Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not damage the case bore during removal of the manual shift shaft seal.

    Remove and DISCARD the manual shift shaft seal (1) using DT-52322  Seal Remover (2).
