Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
When installing the seal, ensure the seal lip is firmly seated against the case bore surface. Do not allow the seal lip to be crushed, or a leak may result.

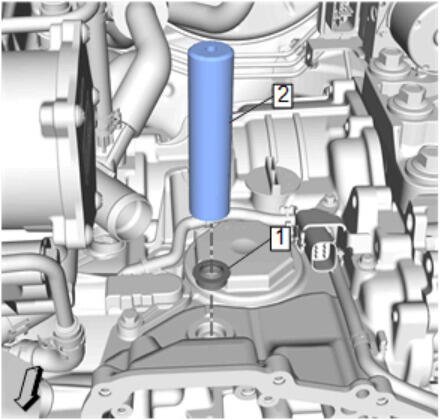

Install a NEW manual shift shaft seal (1) using DT-51672 Manual Shaft Seal Installer (2).
- Install the manual shift detent lever shaft assembly. Manual Shift Detent Lever Shaft Replacement
