Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

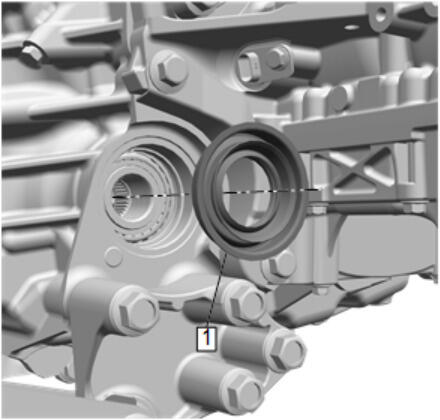

Right Front Wheel Drive Shaft (1) - Install NEW - Use the special tool: DT-50896 Front Wheel Drive Shaft Oil Seal Installer and J-22828 Tube Driver
- Right Front Wheel Drive Shaft - Install - Front Wheel Drive Half Shaft Replacement - Right Side (LFV)
- Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Drain and Fill
- Remove the container under the left front wheel drive shaft seal.
- Lower the vehicle.
