Automatic Transmission Intermediate Speed Sensor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

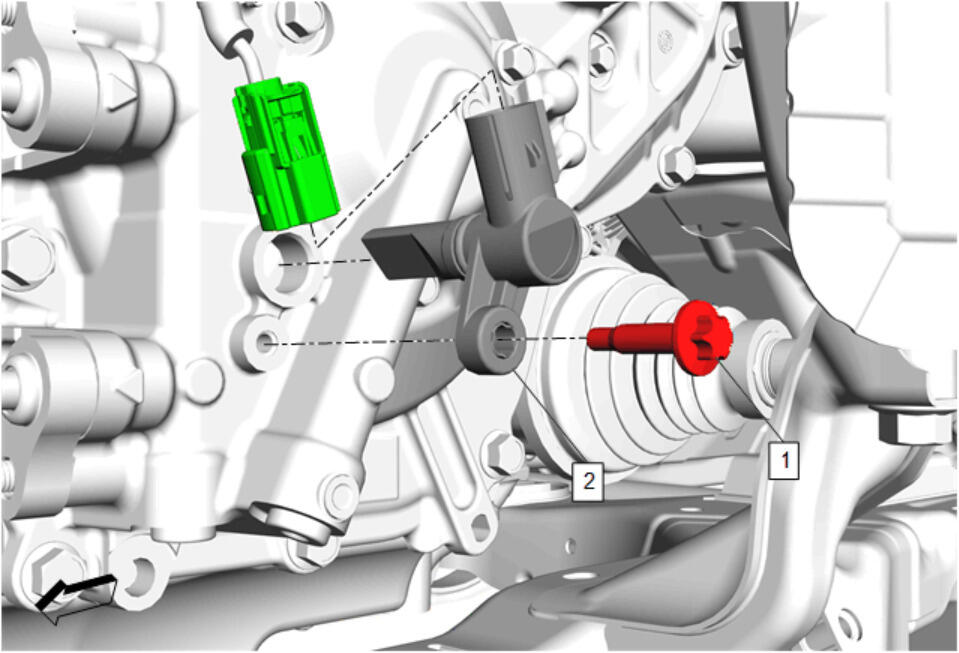

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Front Wheelhouse Liner- Left Side - Remove - Front Wheelhouse Liner Replacement - Left Side
1	Automatic Transmission Intermediate Speed Sensor Bolt CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. CAUTION: Fastener Caution NOTE: Install a NEW bolt. Do NOT reuse the old bolt. Tighten First Pass: 4 N.m (35 lb in) Final Pass: 45 degrees Special Tools DT-48285 Torque Socket Equivalent regional tools:Special Tools
2	Automatic Transmission Intermediate Speed Sensor Procedure Unclip the wiring harness retainer and disconnect the electrical connector.
