Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Place a suitable adjustable jack under the fuel tank.
- Fuel Tank (1) - Install
Fuel Tank Strap (2) - Install [2x]
- Fuel Tank Strap Bolt (1) - Install and tighten [4x] 27 N.m (20 lb ft)

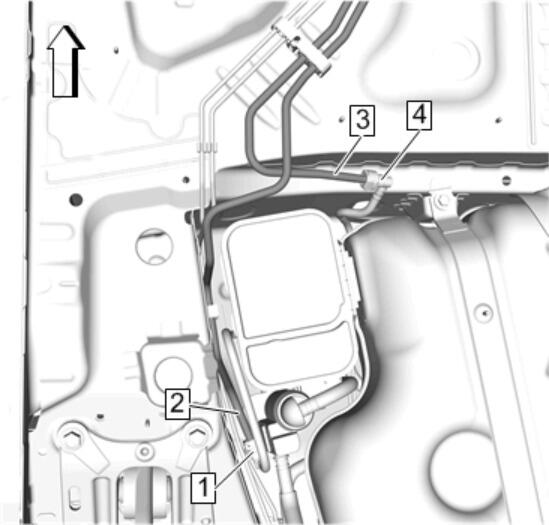

Fuel Feed Pipe (3) @ Fuel Feed Pipe (4) - Connect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Canister Purge Pipe (1) @ Evaporative Emission Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service

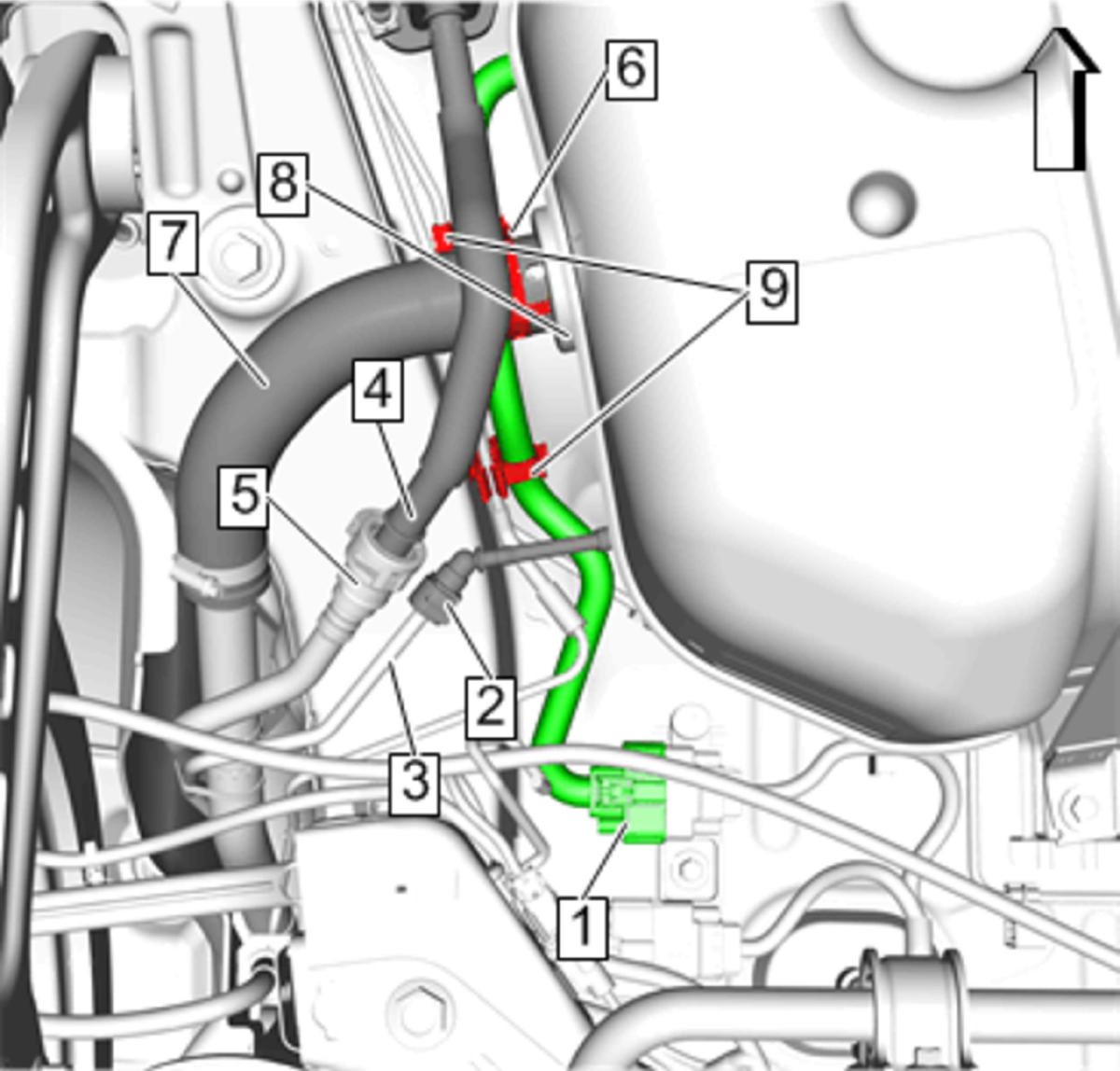

Fuel Tank Filler Hose (7) @ Fuel Tank (8) - Install
- Fuel Tank Filler Hose Clamp (6) - Install and tighten 4 N.m (35 lb in)
- Evaporative Emission Canister (4) @ Evaporative Emission Canister Air Inlet Hose (5) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Vent Pipe (2) @ Fuel Tank Filler Pipe (3) - Connect - Plastic Collar Quick Connect Fitting Service
- Wiring Harness (1) @ Retainer (9) - Install [2x]
- Wiring Harness (1) - Connect
- Exhaust Muffler - Install - Exhaust Muffler Replacement (Dual Exhaust) , or Exhaust Muffler Replacement (Single Exhaust)
- { If equipped }Underbody Rear Air Deflector-Right Side - Install - Underbody Rear Air Deflector Replacement - Right Side (XFE)
- Refill the fuel tank.
- Inspect for fuel leaks.
CAUTION:
Refer to Fastener Caution .
