Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Tank Filler Pipe Housing - Remove - Fuel Tank Filler Pipe Housing Replacement
- Rear Wheelhouse Liner - Remove - Rear Wheelhouse Liner Replacement
Fuel Tank Filler Pipe Bolt (1) - Remove
- Fuel Tank Filler Pipe Nut (2) - Remove

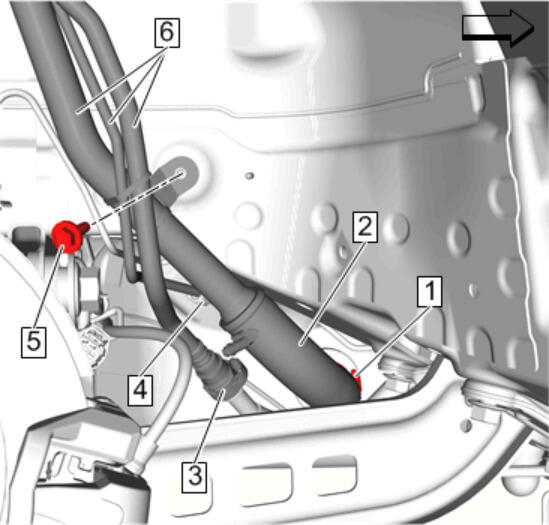

Fuel Tank Filler Hose Clamp (1) - Remove
- Fuel Tank Filler Hose (2) - Remove
- Evaporative Emission Canister Filter Pipe (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Vent Pipe (4) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Pipe Bolt (5) - Remove
- Fuel Tank Filler Pipe (6) - Remove
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
