Fuel Tank Filler Hose Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

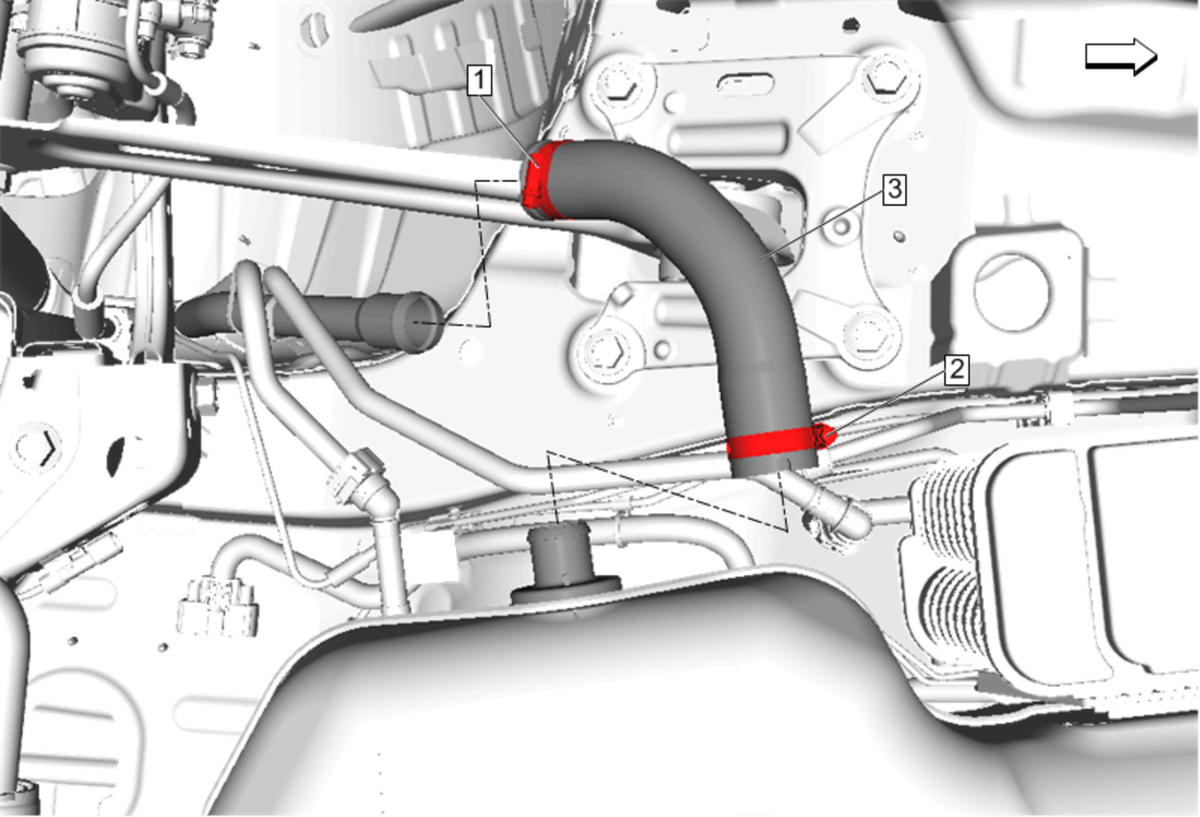

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning . Preliminary Procedures |
|
| 1 | Fuel Tank Filler Hose Clamp
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Fuel Tank Filler Hose Clamp Tighten 3.5 N.m (31 lb in) |
| 3 | Fuel Tank Filler Hose |
